C Band ASE Light Source With Operation Wavelength 1527nm ~ 1565nm

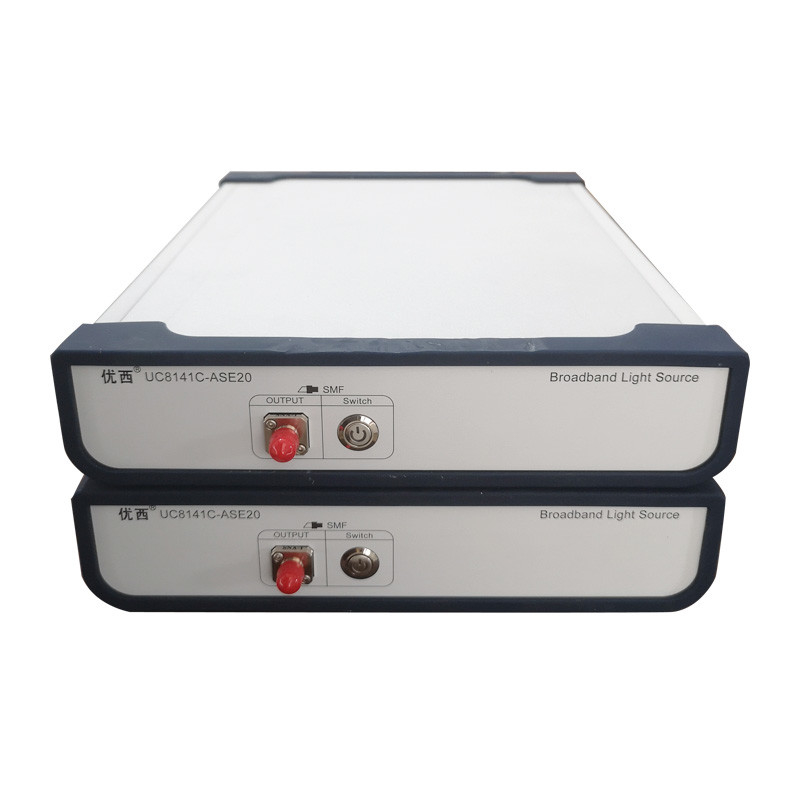

Large Image : C Band ASE Light Source With Operation Wavelength 1527nm ~ 1565nm

Product Details:

Place of Origin:	CHINA
Brand Name:	UC
Model Number:	UC8142C

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	negotiate a price
Packaging Details:	Carton
Delivery Time:	20 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	5pcs+per month

Contact Now

C Band ASE Light Source With Operation Wavelength 1527nm ~ 1565nm

Description

Operation Wavelength:	1525 ~ 1610nm	Output Power （Option）:	20 MW
Connector Type:	FC/APC （other Adaptor Can Be Customized）	Output Power Stability Within 15mins:	＜±0.01 DB
Output Power Stability Within 8 Hrs:	≤± 0.05 DB	Fiber Type:	Single Mode SFM-28
Storage Temperature:	-30 ～ +80℃
Highlight:	C Band ASE Light Source , 1565nm ASE Light Source , 1527nm ASE Light Source

C Band ASE Light Source with Operation Wavelength1527 ~ 1565nm

UC8142C C Band ASE Light Source with Operation Wavelength1527 ~ 1565nm

Specification

Model #	UC8142CL-A
Operation Wavelength	1525 ~ 1610nm
@-10dB Spectral bandwidth@-10dB	≥ 85nm
Output Power (Option)	20 mW
Spectral Density	≥ -15dBm/nm
Connector Type	FC/APC (other adaptor can be customized)
Spectral Density Stability within 15mins	＜± 0.02 dBm/nm
Output Power Stability within 15mins	＜±0.01 dB
Output Power Stability within 8 hrs	≤± 0.05 dB
Operation Model	CW
Fiber Type	Single Mode SFM-28
Operation Temperature	0 ～ +40℃
Storage Temperature	-30 ～ +80℃
Power Supply	AC 110 ~ 220 V±10%, 50Hz/60Hz, 20W
Dimensions	235mm W, 55 mm H, 320 D mm
Weight	2.0 kg

UC8142CL-A CL-band ASE broadband light source adopts erbium-doped fiber gain amplification, combined with spectral flattening technology, and butterfly packaging devices. The single-band continuous output light source is constructed by high stability driving and controlling circuit. The band bandwidth can reach 85nm.

UC8142CL-A CL Band ASE light source has the advantages of high power stability, small size, fast start and affordable price. It provides the output of the broadband light source in the wavelength range of 1525 ~ 1610 nm.

C Band ASE Light Source With Operation Wavelength 1527nm ~ 1565nm 0
