Product Details:
|
| Operating Temperature Range: | 0~55°C | Power Supply Voltage: | 100~240V |
|---|---|---|---|
| Overall Dimensions: | 235 X 55 X 320mm | Connector Type: | SMA |
| Supported Code Types: | PRBS 2n-1, N=7, 9, 10, 11, 15,23, 31, Up To 20 Bits/Ch, User Defined/PRBS 2n-1, N=9, 15, 31 | Output Impedance: | 100Ohm |
| Highlight: | 400G Bit Error Tester,BERT Bit Error Tester |
||

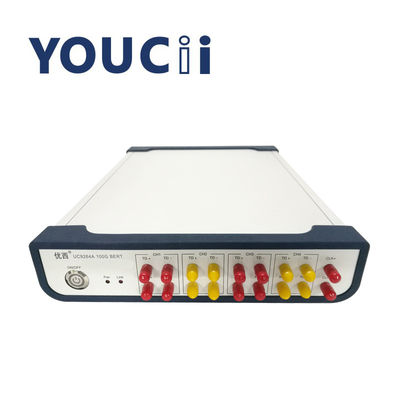

100G/400G Bit-Error Tester BERT With High Cost Performance
An overview of the
UC9264A is a 100G product bit error tester. It can be used in the development and production testing of optical devices, high-speed cables, optical modules and communication systems. Supports multiple rates ranging from 9.953Gbps to 14.5Gbps and 25-29Gbps.
Application
apply to all kinds of light module (QSFP28 CFP2, CFP4, SFP28, SFP +, QSFP +, CFP) and the error testing subsystem
is suitable for all kinds of active, passive cable, active fiber ber test
acts as a signal source for a 10G, 100G test platform
Features
supports rates ranging from 9.953Gbps to 14.5Gbps, and 25 to 29Gbps
Integrates four programmable code generators and four bit error detectors.
internal integrated clock module;
Bit error detector integrated clock recovery unit;
Specifications
| Model | MIN | model | max | unit | note |
| General parameters | |||||
| power supply voltage | 100 | 220 | 240 | V | Alternating current (ac),50-60HZ |
| Power consumption | 20 | W | |||
| Working temperature | 0 | 55 | ℃ | ||
| SIZE | 235 x 55 x 320 | mm | |||
| Bit error detector(ED) | |||||
| Input level range | 100 | — | 1200 | mVppd | Differential input, AC coupling |
| Input rate range | 9.953 | — | 29 | Gbps | |
| 100 | ohm | difference | |||
| Connector Type | SMA | difference,The front panel | |||
| Supported code types | PRBS 2n-1, n=7, 9, 10, 11, 15,23, 31, Up to 20 bits/Ch, user defined | rate 9.953~14.5Gbps | |||
| PRBS 2n-1, n=9, 15, 31 | rate 25~29Gbps | ||||
| Programmable code generator(PPG) | |||||
| Output level range | 200 | — | 1100 | mVppd | Differential, alternating coupling |
| Output rate range | 9.953 | — | 29 | Gbps | 9.953~14.5 / 25~29Gbps |
| Output impedance | 100 | Ohm | The differential | ||
Ac Power Supply Requirements
The instrument complies with overvoltage class II regulations. The operating voltage is 100 ~240V AC voltage, frequency range 48-66Hz, operating voltage 115V When, the maximum consumption current is 230mA; Operating voltage 230V, the most
The maximum consumption current is 120mA.
The power cord
According to international safety standards, the instrument is equipped with a 3-core power cord that meets national standards. Only connect the power cord Plug into a power outlet with ground protection.
Power indicator
The power indicator lights up when the instrument is powered on.
Communication Interface Description
There are two communication ports on the back panel of the instrument, namely USB interface and RS232 interface.
The USB interface
USB interface is a standard 4-core B-type interface, which can be connected to the instrument and PC, and the instrument can be controlled by monitoring software.
