Product Details:
|
| Material: | Metal | Band Option: | C/L/CL |
|---|---|---|---|
| Wavelength Tuning Range: | 1525~1568 | Power Adjust Range: | 25 DB |
| Wavelength Resolution: | 1.0 Pm | Absolute Wavelength Accuracy: | ± 10 Pm, Typ. ＜ 5 Pm |
| Side-mode Suppression Ratio: | ≥ 35dB | Tuning Speed: | ≤ 2 Ms Per Step |
| Highlight: | Adjustable Tunable Laser Source,1570nm Tunable Laser Source |
||

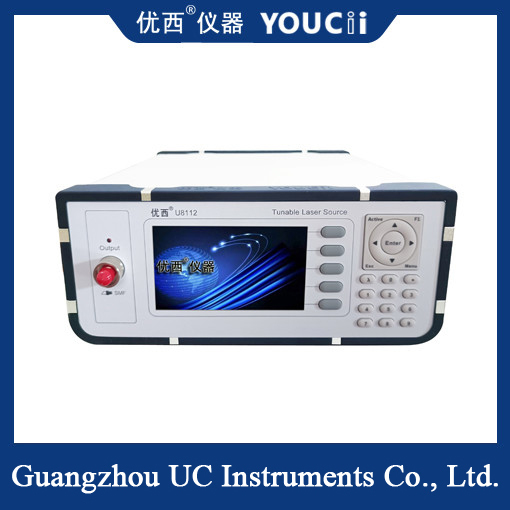

U8112C-P C/L/CL Band Adjustable Tunable Laser Optical Source
The U8112 is an optional tunable laser light source instrument in C, L and C+L bands. With fast wavelength and continuous scanning function, it can be easily integrated into various optical fiber testing and communication systems.
The U8112 tunable laser light source instrument is mainly used in optical fiber sensor applications, high precision wavelength division multiplexing (DWDM) components, optical waveguide grating array (AWG) components, planar optical waveguide (PLC) components, optical amplifier (EDFA) and general optical fiber measurement and application. It has excellent performance, economical and practical.
Should be used
fiber optic sensor measurement.
WDM, AWG, PLC element measurement.
polarization mode dispersion (PMD) and polarization insertion loss (PDL) measurement.
fiber optics, optical communications research and development of laboratory measurement applications.
Specification
| Model # | U8112C-P | |||
| Band Option | C | |||
| Wavelength Tuning range (nm) | 1525~1568 | |||
| Output Power | ≥13dBm | |||
| Power Adjust Range (Option) | 25 dB | |||
| Wavelength resolution | 1.0 pm | |||
| Absolute wavelength accuracy | ± 10 pm, typ. ＜5 pm | |||
| Relative wavelength accuracy | ±5 pm, typ. ± 2 pm | |||
| Wavelength repeatability | ± 2 pm, typ. ±1 pm | |||
| Wavelength stability | ≤± 2 pm (24 hrs at constant temperature) | |||
| Tuning speed | ≤ 2 ms per step | |||
| Power stability | ≤ ± 0.01dB, (15min). | |||
| Power repeatability | ± 0.05dB | |||
| Power linearity | ± 0.3dB | |||
| Power flatness versus wavelength | 0.3dB typ. 0.5dB max. | |||
| Side-mode Suppression ratio | ≥ 35dB | |||
| Relative intensity noise | ＜ -135dB | |||
| Power | AC 100 - 240 V ± 10%, 48 - 66 Hz, 100 VA max. | |||
| Storage temperature | −40°C to +80°C | |||
| Operating temperature | 0°C to +45°C | |||
| Dimensions | 245 mm W, 105 mm H, 320 mm D | |||
| Weight | 2.0 kg | |||
