Product Details:
|
| Operation Wavelength: | 1260 ~ 1650 Nm | Spectral Density: | ≥-28dBm/nm |
|---|---|---|---|
| Spectral Density Stability Within 15mins: | ＜± 0.03 DBm/nm | Output Power Stability Within 15mins: | ＜±0.01 DB |
| Fiber Type: | Single Mode SFM-28 | Storage Temperature: | -30 ～ +80℃ |
| Highlight: | 1650nm Broadband Light Source,Single Mode SFM-28 Broadband Light Source |
||

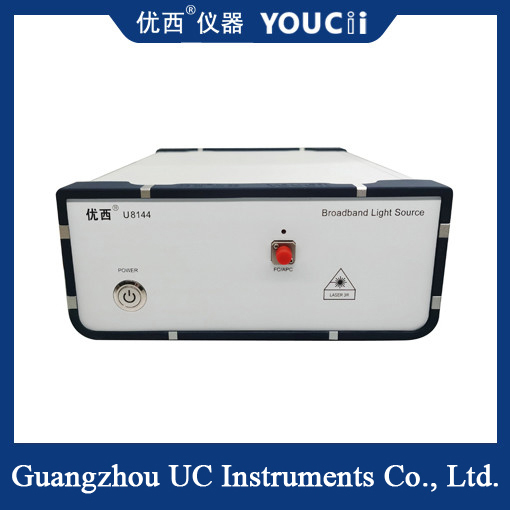

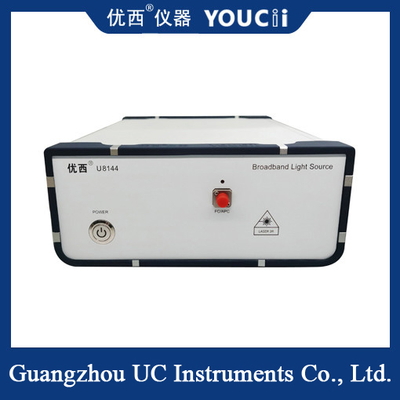

1260 ~ 1650nm Broadband Light Source High Efficiency Laboratory Instrument
The wavelength range of our company's U8144 wideband light source is 1260~1650nm, which is characterized by high speed and high stability. There are other band models with bandwidth up to 100 nm in single band and 400nm in full band. For example, the U8141 is a single-band model, the U8142 is a dual-band model, and the U8144 is a full-band model.
U8144 broadband light source specification
| Model # | U8144 |
| Operation Wavelength | 1260 ~ 1650 nm |
| Band wide @-10 dB | ≥390 nm |
| Output Power | ≥10dBm |
| Spectral Density | ≥-28dBm/nm |
| Connector Type | FC/APC (other adaptor can be customized) |
| Spectral Density Stability within 15mins | ＜± 0.03 dBm/nm |
| Output Power Stability within 15mins | ＜±0.01 dB |
| Output Power Stability within 8 hrs | ≤± 0.05 dB |
| Operation Model | Continuous optical output CW |
| Fiber Type | Single Mode SFM-28 |
| Operation Temperature | 0 ～ +40℃ |
| Storage Temperature | -30 ～ +80℃ |
| Power Supply | AC 110 ~ 220 V±10%, 50Hz/60Hz, 20W |
| Dimensions | 235mm W, 55 mm H, 320 D mm |
| Weight | 3.0 kg |
Other users asked the following questions
What is a broadband light source?
What Is A Broadband Light Source? Simply put, broadband light sources are light sources that produce light across a wide range of wavelengths, as opposed to monochromatic light sources, which produce only a single wavelength or color of light.
What is an example of broadband light source?
What broadband light sources exist? Examples of broadband light sources are halogen lamps, xenon gas discharge lamps, laser-pumped plasma light sources, white light LEDs and laser-pumped white light sources.
