Lab Tunable Laser Source 1525~1568nm C - Band Adjustable Light Source Optical Instrument

I'm Online Chat Now

Lab Tunable Laser Source 1525~1568nm C - Band Adjustable Light Source Optical Instrument

Lab Tunable Laser Source 1525~1568nm C - Band Adjustable Light Source Optical Instrument
Lab Tunable Laser Source 1525~1568nm C - Band Adjustable Light Source Optical Instrument

Large Image :  Lab Tunable Laser Source 1525~1568nm C - Band Adjustable Light Source Optical Instrument

Product Details:
Place of Origin: CHINA
Brand Name: YOUCii
Certification: CU,IOS
Model Number: U8112
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: negotiate a price
Packaging Details: Carton
Delivery Time: 21 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, D/A
Supply Ability: 5pcs+per month

Lab Tunable Laser Source 1525~1568nm C - Band Adjustable Light Source Optical Instrument

Description
Wavelength Tuning Range (nm): 1525~1568 Band Option: C
Power Adjust Range(Option): 25 DB Absolute Wavelength Accuracy: ± 10 Pm, Typ. < 5 Pm
Relative Wavelength Accuracy: ±5 Pm, Typ. ± 2 Pm Tuning Speed: ≤ 2 Ms Per Step
Highlight:

Lab Tunable Laser Source

,

1568nm Tunable Laser Source

Lab Tunable Laser Source 1525~1568nm C - Band Adjustable Light Source Optical Instrument

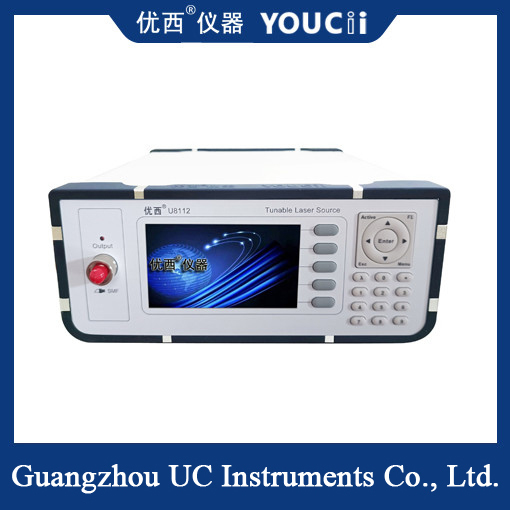

The U8112 benchtop tunable laser light source is mainly used in high precision WDM element, optical waveguide grating array AWG element, planar optical waveguide PLC element and other applications. And more than one band, such as O,C,L and C+L band options, the instrument output power, fast speed, suitable for schools, laboratories, factories and other places.



U8112  laser light source​ specification

 Model  U8112
Band Option C
Wavelength (nm) 1525~1568
Output Power ≥ 13dBm
Power Adjust Range (Option) 25 dB
Wavelength resolution 1.0 pm
 Absolute wavelength accuracy ± 10 pm, typ. <5 pm
Relative wavelength accuracy ±5 pm, typ. ± 2 pm
Wavelength repeatability ± 2 pm, typ. ±1 pm
Wavelength stability ≤± 2 pm (24 hrs at constant temperature)
Tuning speed ≤ 2 ms per step
Power stability ≤ ± 0.01dB, (15min).
Power repeatability ± 0.05dB
Power linearity ± 0.3dB
Power flatness versus wavelength 0.3dB typ. 0.5dB max.
Side-mode Suppression ratio ≥ 45dB
Relative intensity noise < -135dB
Power AC 100 - 240 V ± 10%, 48 - 66 Hz, 100 VA max.
Storage temperature −40°C to +80°C
Operating temperature 0°C to +45°C
Dimensions 245 mm W, 105 mm H, 320 mm D
Weight 2.0 kg





Other users asked the following questions:



What is a light source?

   A laser generates a beam of very intense light. The major difference between laser light and light generated by white light sources (such as a light bulb) is that laser light is monochromatic, directional and coherent. Monochromatic means that all of the light produced by the laser is of a single wavelength.



What's the difference between laser and other light sources?

The first laser was developed in 1960 by Theodore Maiman of Hughes Research Laboratories, based on the work of Charles H. Townes and Arthur Leonard Schawlow. Made of theoretical work. Laser is different from other light sources because the light it emits is coherent.
