Single Path Edfa Amplifier Long Distance Transmission 1528~1565nm

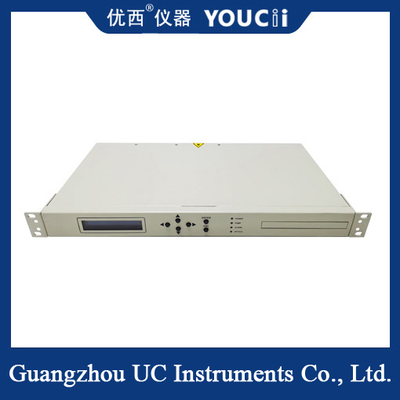

Large Image : Single Path Edfa Amplifier Long Distance Transmission 1528~1565nm

Product Details:

Place of Origin:	CHINA
Brand Name:	YOUCii
Model Number:	U8331C-30

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	negotiate a price
Packaging Details:	cartons
Delivery Time:	21 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, D/A
Supply Ability:	15pcs+per month

Contact Now

Single Path Edfa Amplifier Long Distance Transmission 1528~1565nm

Description

Operating Wavelength:	1528~1565nm	Output Power @-3dBm:	23dBm
Small Signal Gain @-30dBm:	37dB（@1550nm）	Return Loss:	45dB
Polarization Mode Dispersion:	0.5ps	Ower Consumption:	25W
Highlight:	Single Path Edfa Amplifier , 1565nm Single Path Edfa Amplifier , Long Distance Single Path Edfa Amplifier

Single path edfa amplifier Long-distance transmission 1528~1565nm

The birth of Erbium-doped fiber amplifier is a revolutionary breakthrough in the field of fiber communication. It makes the long-distance, large-capacity and high-rate fiber communication possible. It is an indispensable component in DWDM system and future high-speed systems and all-optical networks. Its research and application is of great significance to the development of optical fiber communication. In China, the EDFA series products developed by Wuhan Academy of Postal Sciences have been widely used in engineering. The main function is to compensate the signal light power in the transmission link.

Equipment specification

Product model	U8331C-30
parameter	Min	Type	Max	Units	remarks
Operating wavelength	1528		1565	nm
Output power @-3dBm			23	dBm
Input power	-30		0	dBm
Small signal gain @-30dBm	37			dB	@1550nm
Noise coefficient @-3dBm input		5.0	6.0	dB
Output power stability		±0.05	±0.1	dB
Input isolation	30			dB
Output isolation	30			dB
Return loss			45	dB
Polarization gain		0.3	0.5	dB
Polarization mode dispersion			0.5	ps
Operating temperature	0		45	℃
Storage temperature	-40		80	℃
Power consumption			25	W
Working mode	ACC & APC,Keyboard conversion
Optical interface type	FC/APC,SMF-28
Operating voltage	100~220V AC,Power adapter
Specification and size	484 x 255 x 45 mm (Outer size with hanging ears)

Single Path Edfa Amplifier Long Distance Transmission 1528~1565nm 0
