Product Details:
|
| Operation Wavelength Range: | Operation Wavelength Range | Return Loss Range: | 0~60 DB |
|---|---|---|---|
| Relative Accuracy – Return Loss: | ± 0.4 DB | Absolute Power Accuracy: | ± 0.2 DB |
| Storage Temperature: | -30～+80℃ | Weight: | 3.5kg |
| Highlight: | 60dB Optical Return Loss Meter,Multiwavelength Optical Return Loss Meter |
||
2/3/4/5 Multiwavelength Loss Recovery Instrument Back Reflector

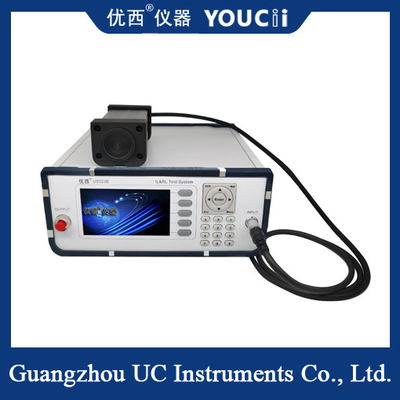

U8523B+U88201 1310/1550 nm dual light source back reflectometer/power meter is a benchtop, LCD screen display, single light source outlet, measuring back loss, insertion loss and direct measurement of optical power instrument. Used to measure the reflection attenuation of various optical devices and optical links, control the quality of optical fiber connectors, optical communication components, systems, optical fiber and cable plug measurement, is applied in the field of excellent solutions.
The U8523 has a built-in light source of 1310nm/1550nm. Integrated with FC/APC ultra-low back reflection connectors at the output port, hybrid jumpers can be used to accommodate measurements of various connector types without affecting the return loss measurement range. When the device under test (DUT) is connected to the jumper DUT output terminal, the return loss of the device under test is displayed.
Display interface introduction
Initialization interface
When the U8523 dual light source is plugged back into the loss instrument and powered on, the display screen will display some detection information, including host serial number and firmware version, as shown in the figure below:
U8523B Return loss meter technical specification:
| Model # | U8523 |
| Sensor Element | InGaAs |
| Operation Wavelength Range | 1310 / 1550 nm |
| Power Range | + 5 ~ -70 dBm |
| Return Loss Range | 0~60 dB |
| Application Fiber Type | Standard SM |
| Relative Accuracy – Return Loss | ± 0.4 dB |
| Absolute Power Accuracy | ± 0.2 dB |
| Relative Accuracy – Insertion Loss | < 0.02 dB Typical |
| Interface | RS232 |
| Power | 100 ~ 240 V AC |
| Operation Temperature | 0～ +40℃ |
| Storage Temperature | -30～+80℃ |
| Recalibration Period | 2 years |
| Dimensions | 245mm W×105mm H×320mm D |
| Weight | 3.5 kg |
