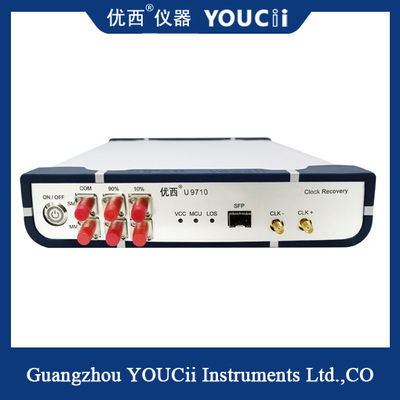

10Gbps Full Rate 10Gbps CDR Clock Recovery Module 0.155~11.3G

10Gbps Full Rate 10Gbps CDR Clock Recovery Module 0.155~11.3G
10Gbps Full Rate 10Gbps CDR Clock Recovery Module 0.155~11.3G

Large Image :  10Gbps Full Rate 10Gbps CDR Clock Recovery Module 0.155~11.3G

Product Details:
Place of Origin: CHINA
Brand Name: YOUCii
Certification: CU,IOS
Model Number: U9710
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: negotiate a price
Packaging Details: cartons
Delivery Time: 21 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, D/A
Supply Ability: 10pcs+per month

10Gbps Full Rate 10Gbps CDR Clock Recovery Module 0.155~11.3G

Description
Data Rate Range: 11.3~0.155 Gbps Internal Signal Loss Detection (LOS): 128~5 MV
Clock Recovery Range: 155Mb/s To 11Gb/s Wavelength Range: 800-1600 Nm
Output Jitter (10.3125Gbps): 1 (typical Value) Ps Operating Temperature: 80~-40°C
Highlight:

10Gbps CDR Clock Recovery Module

,

1600nm CDR Clock Recovery Module

10Gbps Full Rate 10Gbps CDR Clock Recovery Module 0.155~11.3G



When sampling oscilloscope tests optical eye pattern and waveform, it needs to be triggered by the same source as the measured signal. CDR (clock recovery) module is mainly used in the test environment that requires sampling oscilloscope to test optical eye map, but does not provide trigger clock. Typical application is the test of optical network equipment, or for BOB products in PON application, because the measured optical equipment itself does not have a frequency division clock output. The clock signal needs to be recovered to trigger the sampling oscilloscope when testing the optical eye pattern.

This CDR is equipped with an SFP optical port, which can be connected to the conventional SFP, SFP+, OLT SFP and other optical modules encapsulated in SFP. Only the receiving end of the optical module is needed, which is responsible for converting optical signals into electrical signals, and then the instrument extracts and outputs the clock of electric signals. The clock signals are mainly used for triggering signals of oscilloscope.



Main parameters of CDR:



1. Clock recovery range: 155Mb/s to 11Gb/s;

2. Wavelength range: 800-1600 nm;

3. Optical input range: +3 ~ -15dBm;

4. Output recovery electric clock (4 frequency division) range: 38.75MHz to 2.78GHz;

5. Output clock amplitude: AC Couple/ 800mVpp in typical;

6. Spectral ratio (can be selected according to the user) : 10% (CDR) -90% (Output)



Technical index



NO.

technical index

maximum value

minimum value

unit

1

Data rate range

11.3 0.155 Gbps
2

Internal signal loss detection (LOS)

128 (overload) 5(sensitivity) mV
3

Power supply voltage (external power supply input voltage)

5.5 4 V
4

Operating temperature

85 -40 °C
5

Clock rise time (OC-192) (20%~80%)

33.1 22.2 ps
6

Clock down time (OC-192) (80%~20%)

33.7 23.9 ps
7

Clock frequency (10.3125Gbps rate, 2 frequency division)

2.578 2.578 GHz
8

Output jitter (10.3125Gbps)

1 (typical value) ps
