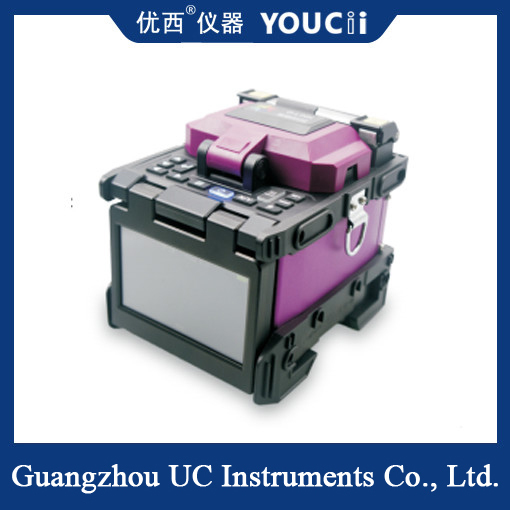

Fusion Splicer 3 Seconds Start 7 Seconds Dissolve 18 Seconds Heat

Fusion Splicer 3 Seconds Start 7 Seconds Dissolve 18 Seconds Heat

Welding machine principle:

Optical fiber splicer is mainly used for docking and maintenance of optical cables in optical communication projects. It mainly relies on high-voltage arc discharge to melt the section of two optical fibers. At the same time, the high-precision moving mechanism is used to gently promote the fusion of two optical fibers into one, so as to realize the coupling of optical fiber mode field.

Classification of welding machine:

Common optical fiber welding machine generally refers to the single-core optical fiber welding machine, in addition, there are specialized for welding strip fiber welding machine strip fiber welding machine, welding leather wire cable, jumper leather wire welding machine, and welding polarizing fiber preserving fiber welding machine and so on.

According TO the different alignment methods can be divided into two categories: cladding alignment (contour alignment system PAS) and CORE to CORE alignment (CORE TO CORE), the two in the price gap is relatively large.

Cladding aligned optical fiber welding machine is mainly used in optical fiber home and other indicators are not too high occasions, generally four motors, the price is relatively cheap;

The core alignment optical fiber welding machine is equipped with a precise six-motor alignment system including a focusing motor, and a specially designed optical lens and software algorithm, which can identify the type of optical fiber accurately and automatically select the matching welding mode for welding, so as to ensure the welding quality. Due to the relatively high technical content, in addition to the optical fiber into the home can also be used in the main line optical fiber welding, so the price will be relatively high.
