SLED Broadband Light Source Wavelength Range Is1260 ~ 1650 nm

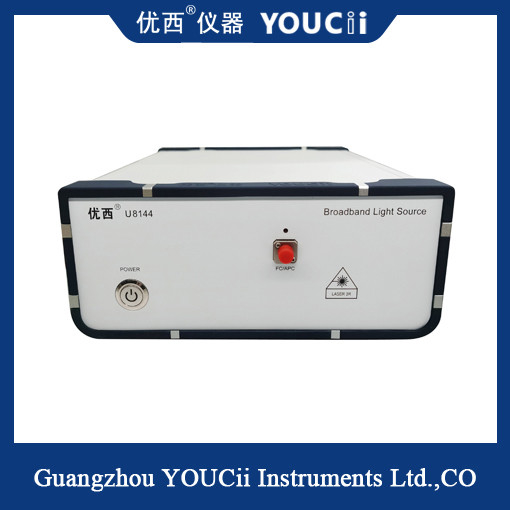

Large Image : SLED Broadband Light Source Wavelength Range Is1260 ~ 1650 nm

Product Details:

Place of Origin:	China
Brand Name:	YOUCii
Certification:	CU,IOS
Model Number:	U8144

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	negotiate a price
Packaging Details:	Carton
Delivery Time:	20 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	20pcs+per month

Contact Now

SLED Broadband Light Source Wavelength Range Is1260 ~ 1650 nm

Description

Spectral Density:	≥-28dBm/nm	Connector Type:	FC/APC (Other Adaptor Can Be Customized)
Spectral Density Stability Within 15mins:	＜± 0.03 DBm/nm	Output Power Stability Within 15mins:	≤±0.005 DB
Dimensions:	235mm W, 55 Mm H, 320 D Mm	Storage Temperature:	-30～+80℃
Highlight:	10mm Stainless Steel Tile Trim , 1650Nm Stainless Steel Tile Trim

SLED Broadband Light Source Wavelength Range Is1260 ~ 1650 Nm

Product Description:

This tunable laser source is a lightweight, powerful device designed to provide high performance laser output over a wide wavelength range. The output power of the device is more than 10dBm, the weight is only 2 kg, easy to carry and operate. The wideband light source U8144 adopts super intensity light-emitting diode (SLED) technology, and butterfly package device, through high stability drive control circuit to form a single band or all band continuous output light source. Single band bandwidth up to 100 nm, full band up to 400nm.

Features:

Product name :U8144 broadband light source
Band wide @-10 dB:≥390 nm
Spectral Density Stability within 15mins: < ± 0.03 dBm/nm
Fiber Type:Single Mode SFM-28
Wavelength range :1260 ~ 1650 nmFiber Type:Single Mode SFM-28

Technical Parameters:

Property	Description
Operation Wavelength	1260 ~ 1650 nm
Weight	3 Kg
Output Power	≥10dBm
Power Supply	AC 100-240V
Connector Type	FC/APC(other adaptor can be customized)
Operation Model	Continuous optical output CW
Storage Temperature	-30 ～ +80℃

Single-band model: U8141, such as U8141C/L, and dual-band model: U8142, such as U8142CL

Full band model: U8144

Support and Services:

Our Tunable Laser Source products come with a comprehensive technical support and service package. Our team of experienced engineers is available to provide assistance with:

Product installation and setup
Troubleshooting
Product maintenance and care
Software and firmware updates
Product customization and optimization
