High Output Power Up To +20 DBm Tunable Laser Source FC APC Optical Connector

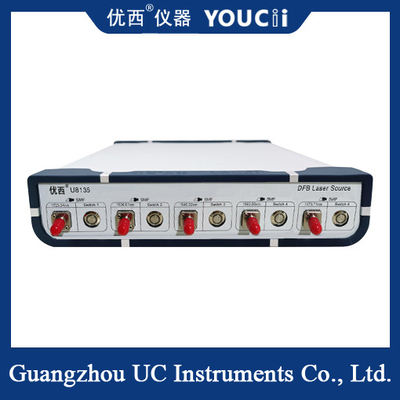

Large Image : High Output Power Up To +20 DBm Tunable Laser Source FC APC Optical Connector

Product Details:

Place of Origin:	China
Brand Name:	YOUCii
Certification:	CU,IOS
Model Number:	U8135

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	negotiate a price
Packaging Details:	Carton
Delivery Time:	20 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	20pcs+per month

Contact Now

High Output Power Up To +20 DBm Tunable Laser Source FC APC Optical Connector

Description

Device Package:	Butterfly	Output Power:	≥ 8.0 MW
Connector Type:	FC/APC	Type Of Fiber:	Single Mode
Communication Interface:	USB	Wavelength Accuracy:	± 0.1 Nm
Highlight:	APC Tunable Laser Source , Optical Connector Tunable Laser Source

High Output Power Up to +20 DBm Tunable Laser Source with FC/APC Optical Connector for B2B Applications

Product Description:

Tunable Laser Source is a reliable and powerful product that delivers exceptional performance. Powered by AC 100-240V, the U8135 multi-channel DFB light source can be used for WDM devices, DWDM devices with high precision WDM, AWG devices with optical waveguide grating array, planar optical waveguide PLC devices, optical amplifier EDFA and other general optical fiber measurement and application. Especially suitable for coupler and planar optical waveguide PLC components of mass production detection. This tunable laser source is designed to last and is guaranteed to provide superior performance.

Features:

Product Name: U8135 Multichannel DBF Tunable Laser Source
Control Interface: USB
Device Package: Butterfly
Wavelength Range: 1523.34 / 1536.61 / 1549.32 / 1563.05 / 1573.71 nm...
Weight: 2 Kg
Connector Type:FC/APC

Technical Parameters:

Parameters	Detail
Wavelength Range	1523.34 / 1536.61 / 1549.32 / 1563.05 / 1573.71 nm...
Bandwidth@3 dB	＜ 0.1 nm
Bandwidth@20 dB	＜ 0.5 nm
SMSR	＞ 40 dB
Optical Connector	FC/APC
Power Supply	AC 100-240V
Dimension	235 mm W, 55 mm H, 320 mm D
Weight	2 Kg

Support and Services:

Optical Power Meter Technical Support and Service ;

Provide 24/7 online technical support and service.;

Provide maintenance and repair service.

Provide free software updates;

Provide rapid response to product issues;

Provide phone support and troubleshooting;

Provide customer service.
