1310/1550nm Tunable Laser Source Dual Wavelength Power Meter Emission Light Source

Large Image : 1310/1550nm Tunable Laser Source Dual Wavelength Power Meter Emission Light Source

Product Details:

Place of Origin:	China
Brand Name:	YOUCii
Certification:	CU,IOS
Model Number:	U8612

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Packaging Details:	Carton
Delivery Time:	20 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	20pcs+per month

Contact Now

1310/1550nm Tunable Laser Source Dual Wavelength Power Meter Emission Light Source

Description

Wavelength Range:	1310/1550 (single Mode, Multi-mode 5 Wavelengths Optional)	Data Interface:	USB/RS232
Power Supply:	Three AA Batteries And A Power Adapter	Output Power (dBm):	≥-7 (single Mode 1310/1490/1550/1625) ≥-9 (multi-mode 850/1300 LD), ≥-23 (multi-mode 850/1300 LED)
Weight (without Battery):	285g	Overall Dimensions (mm):	200×90×50
Highlight:	1550nm Tunable Laser Source , Dual Wavelength Tunable Laser Source

1310/1550nm Handheld Dual Wavelength Power Meter Emission Light Source

Product Description:

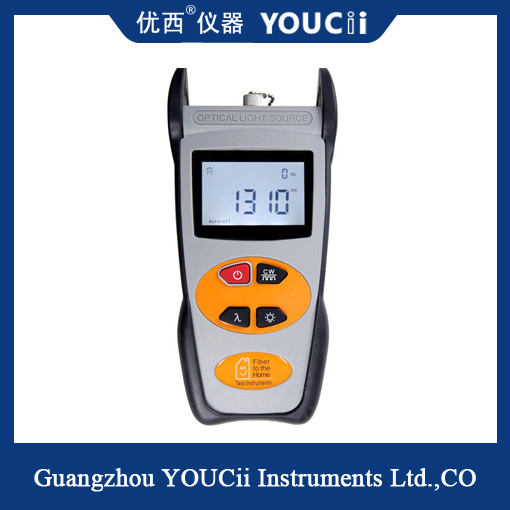

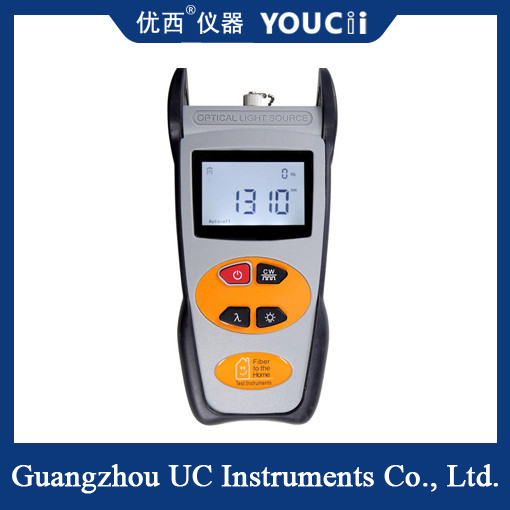

U8612 handheld stable light source, for optical network installation, acceptance and maintenance design and development, the equipment adopts large-size LCD display, moisture-proof/shock-proof design, AC/DC dual power supply, etc., making the product can be widely used in laboratory and field testing. The simple function button design allows you to easily achieve fast wavelength selection.

Features:

Product Name:U8612 handheld dual-wavelength light source
Multi-wavelength high stable output (up to 5 wavelengths);
high wavelength stability, single key switch working wavelength, flexible and convenient operation;
CW or modulated output;
low voltage display function, battery low voltage detection function;
backlight control function;
large LCD displays the working wavelength status;
Optional 10-minute automatic shutdown;

Technical Parameters:

Property	Value
Type of light source	FP / LD
Warranty	1 Year
Wavelength Range	1310/1550 (single mode, multi-mode 5 wavelengths optional)
Modulation mode	CW / 270M,1K,2K
Power Supply	3 AA alkaline batteries (60 hours continuous operation)
Operating temperature (℃)	-10～+60

Support and Services:

Light source Technical Support and Service We provide comprehensive technical support and service for our Optical Power Meters. Our services include:

Technical support for troubleshooting, installation and operation of the light source

Software updates and upgrades

Repair and replacement of components

Calibration and alignment services.

We can also provide customized services to meet your specific needs.
