The 10G Full-Rate Optical Oscilloscope (10G full-rate Optical Oscilloscope) is an instrument designed for the measurement of 10Gbps full-rate optical signals. It is used to evaluate the transmission quality and time domain characteristics of high rate optical signals in optical fiber communication systems.

The following is the main description and features of the 10G full rate optical ophthalmograph:

1. High rate measurement: The instrument can support 10Gbps full rate optical signal measurement, including the common 10 Gigabit Ethernet (10GbE) and other high rate communication protocols.

2. Eye map display: The optical eye map uses high-speed sampling and data processing technology to accurately capture and display the eye map of optical signals. The eye map displays the transmission quality of the optical signal with an open eye shape. Users can evaluate the stability and transmission performance of the signal by observing the opening degree and jitter of the eye map.

3. High-precision measurement: 10G full-rate optical eye chart adopts high-precision clock and sampling technology, which can provide accurate timing measurement and jitter analysis. It can measure and analyze key parameters of the eye map, such as peak-to-peak jitter, root mean square jitter, etc.

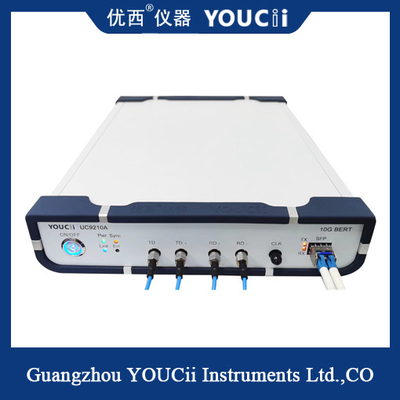

One SFP optical channel and One electric channel, Two channels synchronous input and output, Error Code testing can be independent.

Support for continuous error detection and timing error detection.

Support Full Rate from 622M up to 11.7Gbps；

Support code type: PRBS7 / PRBS 9 / PRBS 15 / PRBS 23 / PRBS 31
