Product Details:
|
| Wavelength Range: | 1525.00 To 1568.00 Nm | Wavelength Resolution: | 1.0 Pm |
|---|---|---|---|
| Absolute Wavelength Accuracy: | ± 10 Pm, Typ. ＜ 4 Pm | Relative Wavelength Accuracy: | ± 4 Pm, Typ. ± 2 Pm |
| Wavelength Stability: | ≤ ± 2 Pm | Output Trig Port: | BNC Trig |
| Highlight: | 1568nm Adjustable Light Source,BNC Trig Adjustable Light Source |
||

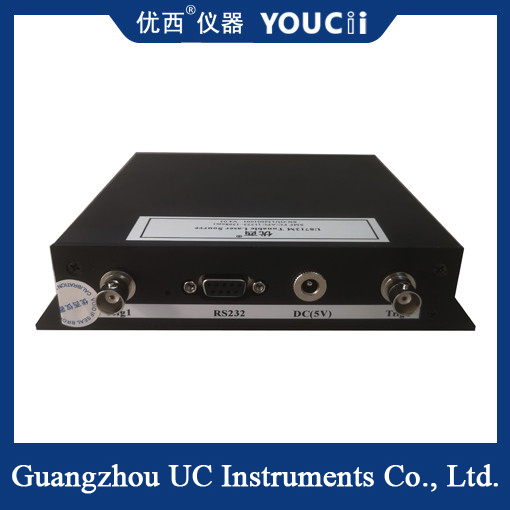

Adjustable Light Source Module 1525~1568nm Small Size
U8712M Tunable Laser Mini Module offer superior performance for the testing of DWDM components, AWG & PLC components, optical amplifiers, and other general purpose fiber optic test and measurement applications. It’s specifically designed for fast sweep fiber grating sensor testing.
U8712M Mini module can be connected to a PC with a USB cable. They are highly accurate, powerful, compact-sized, fast-starting, and affordable tunable laser source systems which provide C band 1 or 2 Laser output options. Module control software is also included on purchase. The module can also be integrated into any requested prodUts system with RS232 interface controls and an output triggered BNC port.
| Model # | U8712M |
| Wavelength range | 1525.00 to 1568.00 nm |
| Output Power | 13 dBm |
| Wavelength resolution | 1.0 pm |
| Absolute wavelength accuracy | ±10 pm, Typ. ＜ 4 pm |
| Relative wavelength accuracy | ± 4 pm, Typ. ± 2 pm |
| Wavelength repeatability | ±2 pm, Typ. ± 1 pm |
| Wavelength stability | ≤ ± 2 pm |
| Tuning speed | ≤0.002 s per step |
| Side-mode Suppression ratio | ≥ 45 dB |
| Output optical interface | PM, FC/APC 或FC/PC connector |
| interface | RS232 or USB |
| Output trig port | BNC trig |
| Power | 5.0V; 4.5A |
| Dimensions | 120 mm W, 24mm H, 60 mm D |
| Weight | 1.0 kg |
Other users also ask the following questions:
1.How does tunable laser source work?
A tunable laser is a laser whose wavelength of operation can be altered in a controlled manner. While all laser gain media allow small shifts in output wavelength, only a few types of lasers allow continuous tuning over a significant wavelength range.
2.What does it mean to tune a laser?
If a laser is tunable, its wavelength can be changed within a defined range in a controlled manner. In some cases, this tuning range is in excess of several hundred nanometers. The wavelength resolution differs from system to system.
