10G Full Rate Single Mode/Multi-Mode Optical Oscilloscope

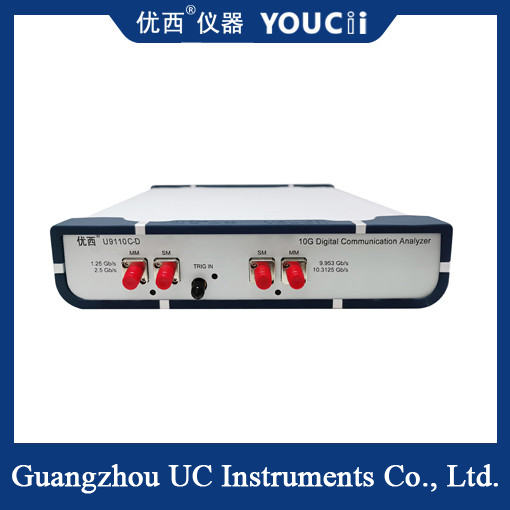

U9110C-D is 10G full rate, support single mode/multi-mode optical oscilloscope, is the latest digital communication analysis solution launched by Uwest Instrument. It provides an ideal measuring tool for the manufacturing of optical communication devices.
The results of the U9110C-D DCA measurement are not only raw data, but also histograms with time and amplitude, Mask tests, statistical tests, etc. It provides a set of communication indicator test Settings, including interval period, rise time, fall time, cross percentage, extinction ratio, jitter, and amplitude measurement. It also includes SDH/SONET, Mask tests for Gigabit Ethernet, and other standard single compliance tests.
The following is the main description and features of the 10G full rate optical ophthalmograph:
1. High rate measurement: The instrument can support 10Gbps full rate optical signal measurement, including the common 10 Gigabit Ethernet (10GbE) and other high rate communication protocols.
2. Eye map display: The optical eye map uses high-speed sampling and data processing technology to accurately capture and display the eye map of optical signals. The eye map displays the transmission quality of the optical signal with an open eye shape. Users can evaluate the stability and transmission performance of the signal by observing the opening degree and jitter of the eye map.
specification
| Model | U9110C-D |
| standard rate | 1.2442/1.25/2.4884/2.5/6.0/9.953/10.3125/10.709/11.3 Gbps |
| Measurement accuracy Mask margin (Margin) | ±3 % |
| Display Characteristics Image Resolution | 1024×768 pixels |
| Digital measurement system | Support 1 optical channel measurement, refresh optional measurement 3 times per second |
| Signal acquisition mode | Sampling (Normal), Envelope, Average |
| RMS noise | 0.25mV |
| Number of sampling channels | 4: 10G low-speed single-mode/multi-mode, 10G high-speed single-mode/multi-mode |
| Vertical System Conversion Time | Depending on the number of sampling channels |
| Vertical resolution | 14 bits |
| RMS noise (max) | 0.5mV |
| Horizontal system Waveform zoom in and zoom out observation time base | 0.5ps/div to 1ms/div |
| Time interval accuracy (jitter mode) | 0.25ps |
| Trigger system External clock source | 100mV,155~2500MHz |
| Trigger level range | ±1.0V |
| trigger input range | ±1.5V |
| Trigger cutoff | ±1.5V:5ms ~100ms adaptive |
| Communication, network management interface | RJ45；support 10/100Mbps Ethernet |
| Power (external power adapter) | 50Hz,5V,3A,6W |
| Ambient temperature, relative humidity Operation | Temperature-20 to ~50℃ , Humidity 20% to ~80% |
| Storage | Temperature-40℃ to +85℃, Humidity 5% to 90% |
| Size Weight | 235W×55H×255L (mm),＜2Kg |
