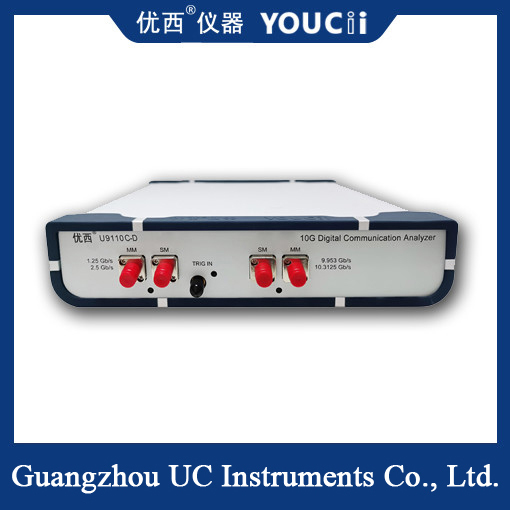

Full Rate Single Mode/Multimode Optical Oscilloscope
U9110C-D is 10G full rate, support single mode/multi-mode optical oscilloscope, is the latest digital communication analysis solution launched by Uwest Instrument. It provides an ideal measuring tool for the manufacturing of optical communication devices.
The results of the U9110C-D DCA measurement are not only raw data, but also histograms with time and amplitude, Mask tests, statistical tests, etc. It provides a set of communication indicator test Settings, including interval period, rise time, fall time, cross percentage, extinction ratio, jitter, and amplitude measurement. It also includes SDH/SONET, Mask tests for Gigabit Ethernet, and other standard single compliance tests.
Instrument characteristics:
1. High rate measurement: The instrument can support 10Gbps full rate optical signal measurement, including the common 10 Gigabit Ethernet (10GbE) and other high rate communication protocols.
2. Eye map display: The optical eye map uses high-speed sampling and data processing technology to accurately capture and display the eye map of optical signals. The eye map displays the transmission quality of the optical signal with an open eye shape. Users can evaluate the stability and transmission performance of the signal by observing the opening degree and jitter of the eye map.
3. High-precision measurement: 10G full-rate optical eye chart adopts high-precision clock and sampling technology, which can provide accurate timing measurement and jitter analysis. It can measure and analyze key parameters of the eye map, such as peak-to-peak jitter, root mean square jitter, etc.
|
Model |
U9110C-D |
|
Standard rate |
1.2442/1.25/2.4884/2.5/6.0/9.953/10.3125/10.709/11.3 Gbps |
|
Measurement accuracy template tolerance(Margin) |
±3 % |
|
Display features image resolution |
1024 x 768 pixels |
|
Digital measuring system |
Supports one optical channel measurement and refreshes optional measurements three times per second |
|
Signal acquisition mode |
Sampling (normal), envelope, average |
|
RMS noise |
0.25mV |
|
Number of sampling channels |
4: 10G low rate single mode/multi-mode, 10G high rate single mode/multi-mode |
|
Vertical system transition time |
Depends on the number of sampling channels |
|
Vertical resolution |
14-bit |
|
RMS noise (maximum) |
0.5mV |
|
Horizontal system waveform amplification and reduction of observation time base |
0.5ps/div to 1ms/div |
|
Time interval accuracy (jitter mode) |
0.25ps |
|
Example Triggering the external clock source of the system |
100mV,155~2500MHz |
|
Trigger level range |
±1.0V |
|
Trigger input range |
±1.5V |
|
Trigger cutoff |
±1.5V: adjustable from 5ms to 100ms |
|
Communication, network management interface |
RJ45; 10/100Mbps Ethernet is supported |
|
Power Supply (External power adapter) |
50Hz,5V,3A,6W |
|
Ambient temperature, relative humidity work |
The temperature is -20℃ to +50℃, and the humidity is 20% to 80% |
|
store |
The temperature is -40℃ to +85℃, and the humidity is 5% to 90% |
|
Physical characteristics Dimensions, weight |
Size 235W×55H×255L (mm), weight < 2Kg |
