Product Details:
|
| Category: | Multimode 4 Channel | Fiber Type: | 50/125 Um Multimode Fiber |
|---|---|---|---|
| Connector Type: | FC / PC | Display Resolution: | 0.01 DB |
| Display Screen: | 272 X 480 | Calibration Cycle: | 2 Years |
| Highlight: | 0.01dB Programmed Optical Attenuator,Four Channel Programmed Optical Attenuator,Multimode Programmed Optical Attenuator |
||

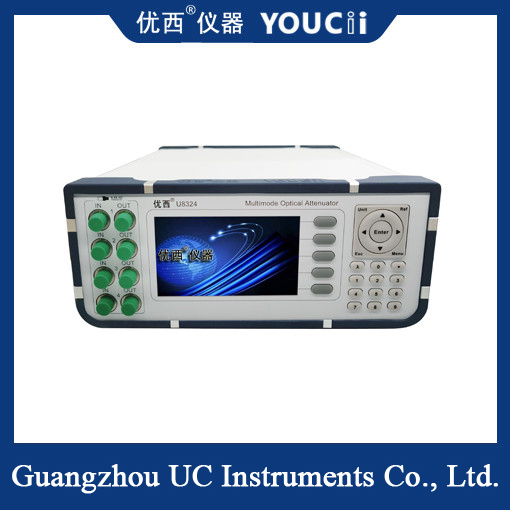

Four-Channel Multimode Programmed Optical Attenuator
The U8324 multi-channel multi-mode bench optical power attenuator is a high-precision and wide-range optical power attenuator. Using a new data acquisition and processing method, it has a larger signal-to-noise ratio, faster response speed, and can reach a large continuous tunable dynamic attenuation range of 0 ~ 40 dB.
The U8324 multi-channel multi-mode benchtop optical power attenuator is mainly used for channel balancing, power balancing, gain slope and power adjustment of DWDM systems, as well as optical measurement and application of AWG & PLC components, optical amplifiers and other general purpose optical fibers.
specification
|
Model |
U8324 |
|
category |
Multimode 4 channel |
|
Wavelength range |
850nm |
|
Fiber type |
50/125 um multimode fiber |
|
Attenuation range |
0 ~ 40 dB |
|
Connector type |
FC / PC |
|
Insertion loss |
≤ 1.5 dB |
|
Return loss |
> 30 dB |
|
Attenuation accuracy |
≤± 0.2dB |
|
repeatability |
≤± 0.05dB |
|
Display resolution |
0.01 dB |
|
Polarization dependent loss (PDL) |
≤0.25 dB (0 ~ 40 dB). |
|
Polarization mode Dispersion (PMD) |
—— |
|
Display screen |
272 x 480 |
|
Calibration cycle |
2 years |
|
Communication interface |
RS232,USB |
|
Power supply |
AC 100-240 V, 48-66 Hz, 230mA Max. |
|
Ambient storage temperature Operating temperature humidness |
−30°C to +80°C 0°C to +40°C <95% R.H. 从 0℃ ~ +45℃ |
|
Product size |
320 mmL,245 mmW,105mmH |
