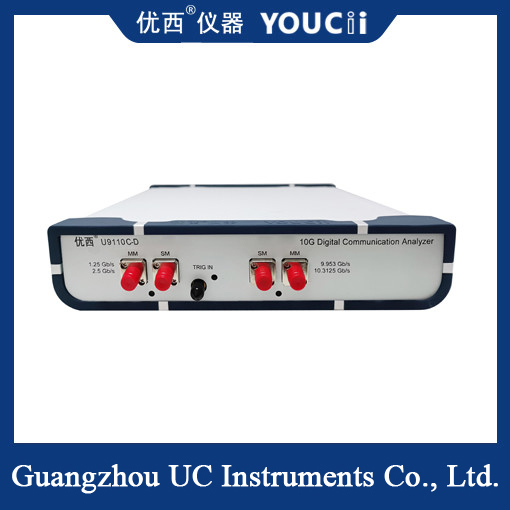

10G Full Rate Support Single Mode/Multi-Mode Optical Oscilloscope
U9110C-D is 10G full rate, support single mode/multi-mode optical oscilloscope, is the latest digital communication analysis solution launched by Uwest Instrument. It provides an ideal measuring tool for the manufacturing of optical communication devices.
The results of the U9110C-D DCA measurement are not only raw data, but also histograms with time and amplitude, Mask tests, statistical tests, etc. It provides a set of communication indicator test Settings, including interval period, rise time, fall time, cross percentage, extinction ratio, jitter, and amplitude measurement. It also includes SDH/SONET, Mask tests for Gigabit Ethernet, and other standard single compliance tests.
Function introduction:
1. Multi-channel measurement: Some 10G full-rate optical eye charts have multi-channel function, which can simultaneously measure the eye charts of multiple optical signal sources. This allows easy comparison and analysis to assess performance differences between different signal sources.
2. Automatic measurement and analysis: Optical eye charts are usually equipped with automatic measurement and analysis functions, which can automatically extract the key parameters of the eye chart, and provide result reports and chart analysis. This can simplify the user's operation process and get the measurement results quickly.
3. High bandwidth and storage capacity: 10G full rate optical eye graph has high bandwidth and large capacity storage space to meet the high-speed sampling and storage requirements of high rate optical signals. This ensures the integrity and accuracy of the measurement data.
Specification
|
Model number |
U9110C-D |
|
Standard rate |
1.2442/1.25/2.4884/2.5/6.0/9.953/10.3125/10.709/11.3 Gbps |
|
Measurement accuracy template tolerance(Margin) |
±3 % |
|
Display features image resolution |
1024×768 pixel |
|
Digital measuring system |
Supports one optical channel measurement and refreshes optional measurements three times per second |
|
Signal acquisition mode |
Sampling (normal), envelope, average |
|
RMS noise |
0.25mV |
|
Number of sampling channels |
4: 10G low rate single mode/multi-mode, 10G high rate single mode/multi-mode |
|
Vertical system transition time |
Depends on the number of sampling channels |
|
Vertical resolution |
14-bit |
|
RMS noise (maximum) |
0.5mV |
|
Horizontal system waveform amplification and reduction of observation time base |
0.5ps/div to 1ms/div |
|
Time interval accuracy (jitter mode) |
0.25ps |
|
Example Triggering the external clock source of the system |
100mV,155~2500MHz |
|
Trigger level range |
±1.0V |
|
Trigger input range |
±1.5V |
|
Trigger cutoff |
±1.5V: adjustable from 5ms to 100ms |
|
Communication, network management interface |
RJ45; 10/100Mbps Ethernet is supported |
|
Power Supply (External power adapter) |
50Hz,5V,3A,6W |
|
Ambient temperature, relative humidity work |
The temperature is -20℃ to +50℃, and the humidity is 20% to 80% |
|
store |
The temperature is -40℃ to +85℃, and the humidity is 5% to 90% |
|
Physical characteristics Dimensions, weight |
Size 235W×55H×255L (mm), weight < 2Kg |
