Product Details:
|
| Operating Wavelength: | 1260 ～ 1650nm | Test Wavelength: | 1310nm / 1550 Nm |
|---|---|---|---|
| Repeatability: | ≤0.1 DB | Working Power Supply: | AC 220V |
| Crosstalk: | ≥50dB | Switching Time: | ≤5ms（Adjacent Sequential Switching） |
| Highlight: | Eight Channel Output Optical Switch,Four Channel Input Optical Switch |
||

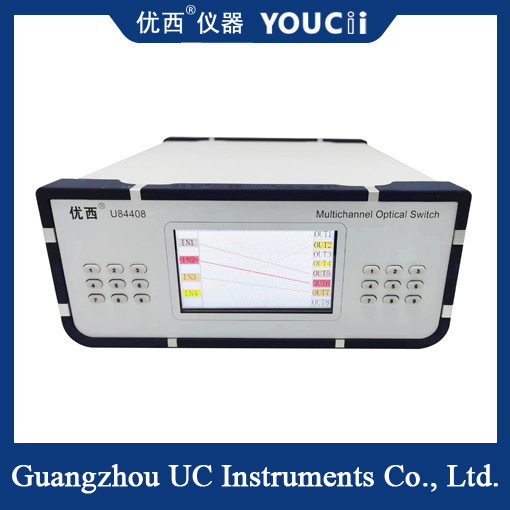

Four-Channel Input And Eight-Channel Output Optical Switch
Product introduction
Optical switch is a kind of optical path control device, which plays the role of controlling optical path and converting optical path. It plays an important role in optical communication applications.
The optical switch is mainly used in: multi-channel optical monitoring in optical transmission system, LAN multi-light source/detector automatic switching and optical sensing multi-point dynamic monitoring system; The optical test system is used for optical fiber, optical device, network and field engineering cable testing; Optical device installation and adjustment. The 4 x 8 optical switch switches the four input routes to one of the eight output routes.
Technical indicators
| MODEL | U84408 |
| Operating wavelength | 1260 ～ 1650nm |
| Test wavelength | 1310nm / 1550 nm |
| Insertion loss | ≤1.7 dB |
| repeatability | ≤0.1 dB |
| Return loss | ≥45dB |
| crosstalk | ≥50dB |
| Switching time | ≤5ms(Adjacent sequential switching) |
| Fiber type | Single |
| Connector form | FC/APC |
| Monitoring port | RS232,USB,Ethernet port |
| Working power supply | AC 220V |
| Operating temperature | -5 ～ + 65℃ |
| Storage temperature | -40 ～ + 85°C |
