100Gbps Multi - Frequency Division Clock Recovery Instrument

I'm Online Chat Now

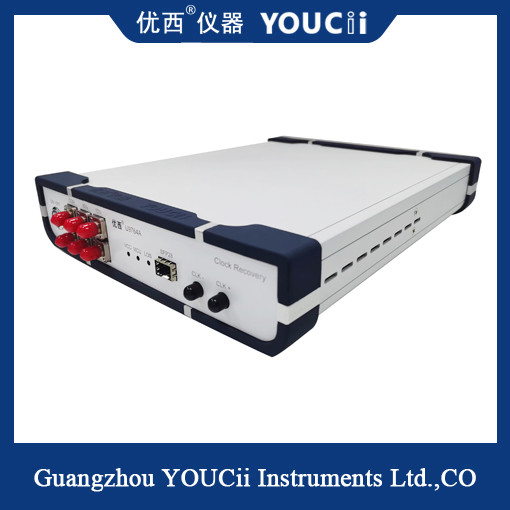

100Gbps Multi - Frequency Division Clock Recovery Instrument

100Gbps Multi - Frequency Division Clock Recovery Instrument
100Gbps Multi - Frequency Division Clock Recovery Instrument

Large Image :  100Gbps Multi - Frequency Division Clock Recovery Instrument

Product Details:
Place of Origin: CHINA
Brand Name: YOUCii
Certification: CU,IOS
Model Number: U9764A
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: negotiate a price
Packaging Details: Carton
Delivery Time: 20 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 15 pcs+per month

100Gbps Multi - Frequency Division Clock Recovery Instrument

Description
Optical Input Range (determined By Module Sensitivity)(dBm): 3~-12 Clock Recovery Output Frequency Division Ratio: 2 / 4 / 8 / 16 / 64 / 256
Output Electrical Clock Amplitude(mVpp): 800(typical Value) CML Clock Differential Output Swing(mVpp): 200~800
Clock Frequency (28.1Gbps As An Example)(GHz): 0.11~14.05 Adaptive Module Type: SFP28,SR,LR,BIDI
Highlight:

Multi - Frequency Division Clock Recovery Instrument

,

100Gbps Clock Recovery Instrument

100Gbps Multi-Frequency Division Clock Recovery Instrument



   U9764A CDR (Clock Recovery Module ) is mainly used to provide clock recovery signal in the test environment without triggering clock, so as to use the sampling oscilloscope to test the optical eye diagram of the device. The typical application is the testing of optical network equipment or the BOB prodUt in PON application. Because the photometric device itself has no frequency division clock output, it is necessary to recover the clock signal to trigger the sampling oscilloscope when testing the optical eye diagram.

   U9764A CDR has a SFP28 optical port, which is suitable for SFP encapsulated conventional SFP28, SR,LR,BIDI and other optical modules. It only needs the receiving end of the optical module to convert the optical signal to the electrical signal, and then extract and output the clock of the electrical signal. Clock signal is mainly used for the trigger signal of oscilloscope.





The full name of CDR is Clock and Data Recovery. As the name suggests, the main functions of CDR are:

1) to provide the clock signal for each circuit at the receiver end.

2) to judge the received signal, to facilitate the recovery and subsequent processing of the data signal.





NO.

Technical indicators

Max Min

unit

1

Data rate range

28.1 25.6 Gbps
2

Wavelength range

1600 800 nm
3

Optical input range (determined by module sensitivity)

+3 -12 dBm
4

Clock recovery output frequency division ratio

2 / 4 / 8 / 16 / 64 / 256
5

Output electrical clock amplitude

800(typical value) mVpp
6

CML clock differential output swing

800 200 mVpp
7

The clock output jitter randomly

800 300 fs
8

Clock frequency (28.1Gbps as an example)

14.05 0.11 GHz
9

Internal Signal Loss Detection (LOS)

128 (over duty) 5(sensitivity) mV
10

Power supply voltage (external power input voltage)

5.5 4 V
11

Operating temperature

70 10
12

Adaptive module type

SFP28,SR,LR,BIDI
