Product Details:
|
| Standard Rate: | 1.2442/1.25/2.4884/2.5/6.0/9.953/10.3125/10.709/11.3 Gbps | Display Features Image Resolution: | 1024 X 768 Pixels |
|---|---|---|---|
| Number Of Sampling Channels: | 4: 10G Low Rate Single Mode/multi-mode, 10G High Rate Single Mode/multi-mode | Vertical Resolution: | 14-bit |
| Time Interval Accuracy (jitter Mode): | 0.25ps | Trigger Cutoff: | ±1.5V: Adjustable From 5ms To 100ms |
| Highlight: | Multi Mode Optical Oscilloscope,ingle Mode Optical Oscilloscope,10G Full Rate Optical Oscilloscope |
||

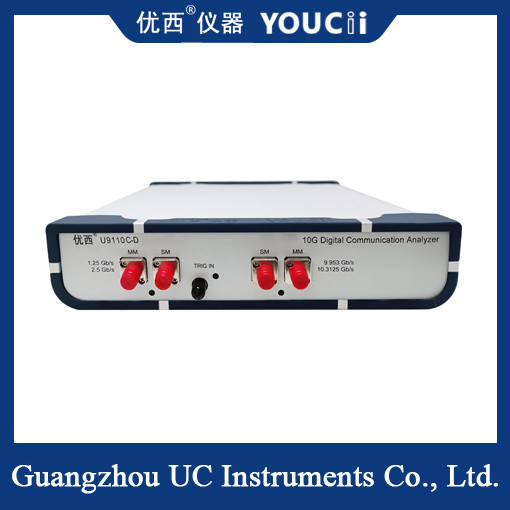

10G Full Rate Single Mode/Multi-Mode Optical Oscilloscope
Product Introduction:
U9110C-D is 10G full rate, support single mode/multi-mode optical oscilloscope, is the latest digital communication analysis solution launched by Uwest Instrument. It provides an ideal measuring tool for the manufacturing of optical communication devices.
The results of the U9110C-D DCA measurement are not only raw data, but also histograms with time and amplitude, Mask tests, statistical tests, etc. It provides a set of communication indicator test Settings, including interval period, rise time, fall time, cross percentage, extinction ratio, jitter, and amplitude measurement. It also includes SDH/SONET, Mask tests for Gigabit Ethernet, and other standard single compliance tests.
Function introduction:
1. Automatic ITU/ANSI Mask test
2. User operation and graphical display interface based on PC Ethernet communication software
3. Modular structure, fast sampling rate
4. High-fidelity signal (Jitter< 0.1ps, RMS-Typical)
Optical oscilloscopes are widely used in high-speed signal detection, such as communication equipment, radio equipment, semiconductor chips and computer bandwidth testing. In addition, the optical oscilloscope can also be used to measure other physical quantities, such as thermal expansion, displacement and so on.
Product specifications:
|
Model |
U9110C-D |
|
Standard rate |
1.2442/1.25/2.4884/2.5/6.0/9.953/10.3125/10.709/11.3 Gbps |
|
Measurement accuracy template tolerance(Margin) |
±3 % |
|
Display features image resolution |
1024 x 768 pixels |
|
Digital measuring system |
Supports one optical channel measurement and refreshes optional measurements three times per second |
|
Signal acquisition mode |
Sampling (normal), envelope, average |
|
RMS noise |
0.25mV |
|
Number of sampling channels |
4: 10G low rate single mode/multi-mode, 10G high rate single mode/multi-mode |
|
Vertical system transition time |
Depends on the number of sampling channels |
|
Vertical resolution |
14-bit |
|
RMS noise (maximum) |
0.5mV |
|
Horizontal system waveform amplification and reduction of observation time base |
0.5ps/div to 1ms/div |
|
Time interval accuracy (jitter mode) |
0.25ps |
|
Example Triggering the external clock source of the system |
100mV,155~2500MHz |
|
Trigger level range |
±1.0V |
|
Trigger input range |
±1.5V |
|
Trigger cutoff |
±1.5V: adjustable from 5ms to 100ms |
|
Communication, network management interface |
RJ45; 10/100Mbps Ethernet is supported |
|
Power Supply (External power adapter) |
50Hz,5V,3A,6W |
|
Ambient temperature, relative humidity work |
The temperature is -20℃ to +50℃, and the humidity is 20% to 80% |
|
store |
The temperature is -40℃ to +85℃, and the humidity is 5% to 90% |
|
Physical characteristics Dimensions, weight |
Size 235W×55H×255L (mm), weight < 2Kg |
