Product Details:
|
| Light Source Type: | FP / LD | Wavelength (nm): | 1310/1550（Single Mode, Multi-mode 5 Wavelengths Available） |
|---|---|---|---|
| Output Stability (dB): | ±0.05 (18 Hours) | Fiber Type: | Single Mode/multi-mode Optional |
| Power Source: | 3 AA Alkaline Batteries (60 Hours Continuous Operation) | Operating Temperature (℃): | -10～+60 |
| Highlight: | LCD Display Handheld Stable Light Source,Large Size Handheld Stable Light Source |
||
Large Size LCD Display With Handheld Stable Light Source Is Widely Used
Product Overview:

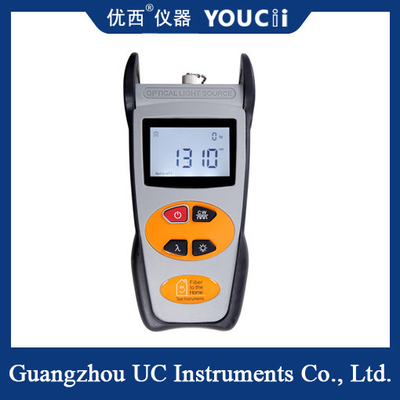

U8612 handheld stable light source, for optical network installation, acceptance and maintenance design and development, the equipment adopts large-size LCD display, moisture-proof/shock-proof design, AC/DC dual power supply, etc., making the product can be widely used in laboratory and field testing. The simple function button design allows you to easily achieve fast wavelength selection.
Product features:
▲Multi-wavelength high stable output (up to 5 wavelengths);
▲high wavelength stability, single key switch working wavelength, flexible and convenient operation;
▲CW or modulated output;
▲low voltage display function, battery low voltage detection function;
▲backlight control function;
▲ large LCD displays the working wavelength status;
▲ Optional 10-minute automatic shutdown;
A handheld dual-wavelength light source is a dual-wavelength light source that is primarily used for accurate fiber optic testing. This light source has excellent stability and portability, allowing for accurate fiber optic testing. The light source has dual wavelength, three wavelength and four wavelength options to meet different test needs. In addition, it also has a backlight and automatic shutdown function, durable, support for different output mode selection.
Technical indicators:
| Product model | U8612 |
| Light source type | FP / LD |
| Wavelength (nm) | 1310/1550(Single mode, multi-mode 5 wavelengths available) |
| Output power (dBm) |
≥-7 (single mode 1310/1490/1550/1625) ≥-9 (multi-mode 850/1300 LD), ≥-23 (multi-mode 850/1300 LED) |
| Modulation mode | CW / 270M,1K,2K |
| Output stability (dB) | ±0.05 (18 hours) |
| Fiber type | Single mode/multi-mode optional |
| Power source | 3 AA alkaline batteries (60 hours continuous operation) |
| Operating temperature (℃) | -10～+60 |
| Storage temperature (℃) | -25～+70 |
| Overall dimensions (mm) | 200×90×50 |
| Weight (without battery) | 285 克 |
