Handheld Lan WDM Four - Wavelength Light Source And Optical Power Meter

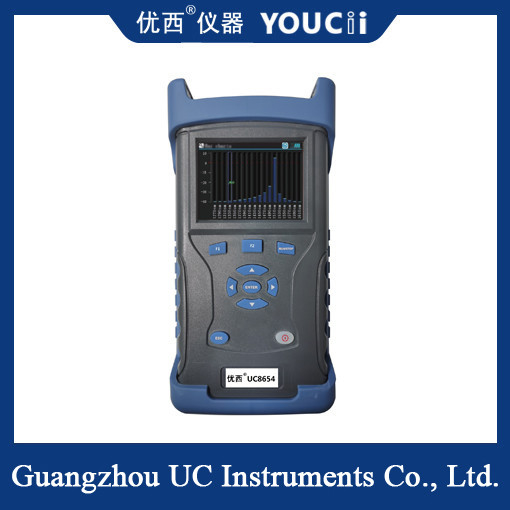

Large Image : Handheld Lan WDM Four - Wavelength Light Source And Optical Power Meter

Product Details:

Place of Origin:	China
Brand Name:	YOUCII
Certification:	CU,IOS
Model Number:	U8654

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	negotiate a price
Packaging Details:	Carton
Delivery Time:	20 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, T/T
Supply Ability:	20 pcs+per month

Contact Now

Handheld Lan WDM Four - Wavelength Light Source And Optical Power Meter

Description

Working Mode:	Light Source/optical Power Meter	Output Wavelength/Probe Wavelength:	1271, 1291, 1311, 1331 Nm
Fiber Type:	Single Mode	Battery Duration (h):	2
Power Supply:	Lithium Battery, AC Adapter	Automatic Shutdown Time (min):	5
Highlight:	Four Wavelength Optical Power Meter , Handheld Optical Power Meter

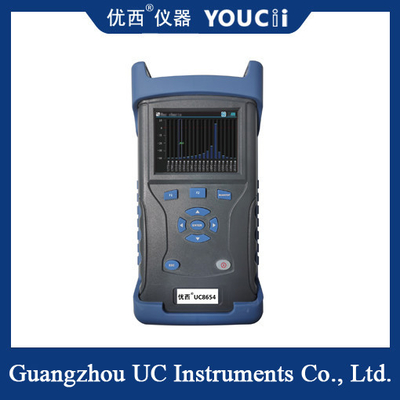

Handheld LanWDM Four-Wavelength Light Source And Optical Power Meter

Product Overview:
U8654 is a hand-held device combining LanWDM four-wavelength light source and corresponding four-wavelength optical power meter, with built-in optical attenuation device to realize adjustable output power of light source.

With highly integrated Mux and DeMux components and high stability driver circuit and high precision optical detection technology, it is specially designed and developed for optical network installation, detection and maintenance, as well as optical communication components production line inspection.

LAN WDM four-wavelength light source and optical power meter can be used together to measure wavelength and power. The optical power meter is used to measure the power of the optical signal, while the LAN WDM four-wavelength light source can provide four different wavelengths of optical signals. By using these tools, the performance of optical communication systems can be evaluated and optimized.

Specifications:

Product model	U8654
Working mode	light source	optical power meter
Output wavelength/Probe wavelength	1271, 1291, 1311, 1331 nm
device type	DFB	InGaAs
Power adjustable/detection range	+5 ~ -5 dBm	+5 ~ -55 dBm
Power stability/detection accuracy	Short time 15 minutes ≤±0.01 dB	5%
Fiber Type	single mode
Board to Board	FC/APC	FC / LC / SC optional
Light output/detection form	Four in one output	One minute and four probes
Display resolution (dB)	0.01
communication interface	Mini USB
power supply	Lithium battery, AC adapter
Battery duration (h)	2
Automatic shutdown time (min)	5
Operating temperature (℃)	-10～+40
Operating temperature (℃)	-25～+70
Overall size (mm)	220×100×75
Weight (excluding batteries)	1Kg
