Product Details:
|
| Operating Wavelength: | 1260 ～ 1650nm | Insertion Loss: | ≤1.7 DB |
|---|---|---|---|
| Repeatability: | ≤0.1 DB | Fiber Type: | Single Module |
| Working Power Supply: | AC 220V | Storage Temperature: | -40 ～ + 85°C |
| Highlight: | Multi-Wavelength Band Display Optical Switch,1.7 dB Optical Switch |
||

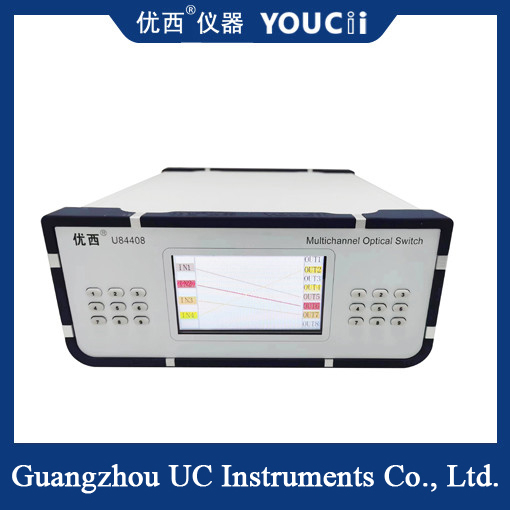

Multi-wavelength band display optical switch is cost-effective
Product
Optical switch is a kind of optical path control device, which plays the role of controlling optical path and converting optical path. It plays an important role in optical communication applications.
The optical switch is mainly used in: multi-channel optical monitoring in optical transmission system, LAN multi-light source/detector automatic switching and optical sensing multi-point dynamic monitoring system; The optical test system is used for optical fiber, optical device, network and field engineering cable testing; Optical device installation and adjustment. The 4 x 8 optical switch switches the four input routes to one of the eight output routes.
Optical switch is a device used for optical path switching, and its main function is to realize the switch of optical signals between multiple optical paths. Specifically, optical switches can quickly and accurately switch optical signals between different optical paths to meet the needs of optical communication systems.
The role of optical switch mainly includes the following aspects:
1. Realize flexible configuration of optical path;
2. Improve the reliability and stability of optical communication system;
3. Select routes for optical signals.
Specification
| Model | U84408 |
| Operating wavelength | 1260 ～ 1650nm |
| Test wavelength | 1310nm / 1550 nm |
| Insertion loss | ≤1.7 dB |
| repeatability | ≤0.1 dB |
| Return loss | ≥45dB |
| crosstalk | ≥50dB |
| Switching time | ≤5ms (adjacent sequence switching) |
| Fiber type | Single module |
| Connector form | FC/APC |
| Monitoring port | RS232, USB, Ethernet ports |
| Working power supply | AC 220V |
| Operating temperature | -5 ～ + 65℃ |
| Storage temperature | -40 ～ + 85°C |
