Product Details:
|
| Operation Wavelength: | 1510~ 1590 Nm | Model: | U8141C-55-80 |
|---|---|---|---|
| Spectral Density: | ≥-15 DBm/nm | Spectral Density Stability Within 15mins: | ＜± 0.03 DBm/nm |
| Fiber Type: | Single Mode SFM-28 | Operation Temperature: | 0～ +40 ℃ |
| Highlight: | Ultra-Intensity LED Light Source,LED Broadband Light Source |
||

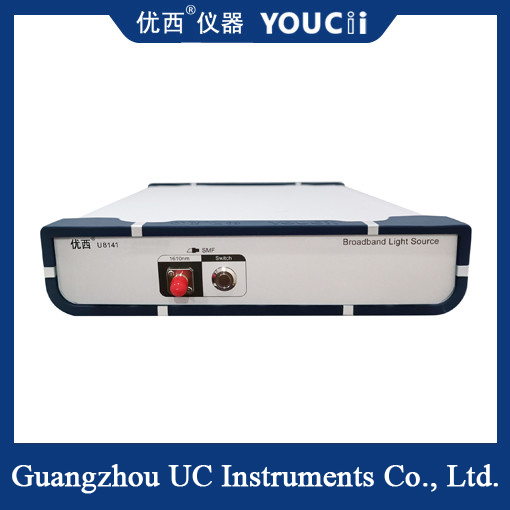

Ultra-Intensity LED Technology Broadband Light Source Cost-Effective
summarize
U8141 broadband light source is composed of Super Luminescent Diode (SLD) technology and butterfly packaging device. The single-band continuous output light source is constrUted by high stability driving and controlling circuit. The single band bandwidth can reach 100nm, and the full band bandwidth can reach 400nm.
U8141 broadband light source has the advantages of high power stability, small size, fast start and affordable price. It provides the output of the broadband light source in the wavelength range of 1260 ~ 1650 nm.
A single-band multimode wideband light source is a special type of light source that can produce a continuous light output over a specific wavelength range. This kind of light source is usually used in optical communication, spectral analysis, optical measurement and other fields.
Specifically, the single-band multi-mode wideband light source uses ultra-intensity light-emitting diode (SLD) technology and butterfly package devices. By driving the control circuit with high stability, it can produce a continuous light output in a single band. Single-band bandwidths can reach 100 nanometers (nm), while full-band bandwidths can reach 400nm.
Specification
| Model # | U8141C-55-80 |
| Operation Wavelength | 1510~ 1590 nm |
| Band wide | ≥80 nm |
| Output Power | ≥12 dBm |
| Spectral Density | ≥-15 dBm/nm |
| Connector Type | FC/APC (other adaptor can be customized) |
| Spectral Density Stability within 15mins | ＜± 0.03 dBm/nm |
| Output Power Stability within 15mins | ＜±0.01 dB |
| Output Power Stability within 8 hrs | ≤± 0.05 dB |
| Operation Model | CW |
| Fiber Type | Single Mode SFM-28 |
| Operation Temperature | 0 ～ +40℃ |
| Storage Temperature | -30 ～ +80℃ |
| Power Supply | AC 110 ~ 220 V±10%, 50Hz/60Hz, 20W |
| Dimensions | 235mm W, 55 mm H, 320 D mm |
| Weight | 3.0 kg |
