Product Details:
|
| Band Wide @-10 DB: | ≥390 Nm | Spectral Density: | ≥-28dBm/nm |
|---|---|---|---|
| Connector Type: | FC/APC (other Adaptor Can Be Customized) | Operation Temperature: | 0～ +40 ℃ |
| Storage Temperature: | -30～+80 ℃ | Operation Wavelength: | 1260 ~ 1650 Nm |
| Highlight: | Broadband Light Source,Continuous Output Broadband Light Source |
||
Full Band Continuous Output Broadband Light Source 1260 ~ 1650 Nm
summarize

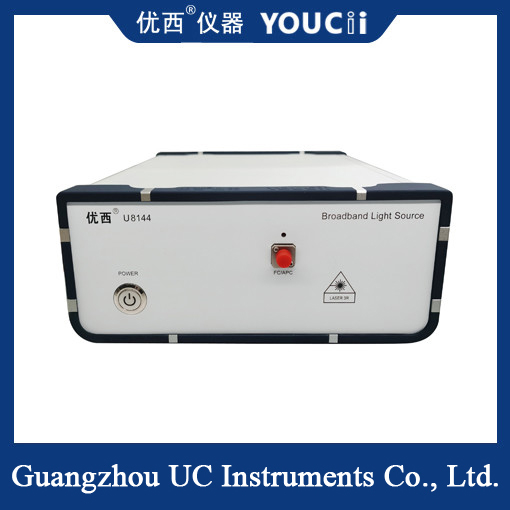

U8144 broadband light source is composed of ultra-strong light-emitting diode (SLED) technology and butterfly packaging device. The single-band or full-band continuous output light source is constrUted by high stability driving and controlling circuit. The single band bandwidth can reach 100nm, and the full band bandwidth can reach 400nm.
U8144 broadband light source has the advantages of high stability, small size, fast start and affordable price. It provides the output of the broadband light source in the wavelength range of 1260 ~ 1650 nm.
Broadband light source is a special type of light source, which is widely used in scientific research, optical sensors, high-precision spectral analysis and space (wireless) optical communication. Specifically, it may be used to generate and transmit optical signals in a wide spectral range to meet the special needs of light sources in these fields.
Specification
| Model # | U8144 |
| Operation Wavelength | 1260 ~ 1650 nm |
| Band wide @-10 dB | ≥390 nm |
| Output Power | ≥10dBm |
| Spectral Density | ≥-28dBm/nm |
| Connector Type | FC/APC (other adaptor can be customized) |
| Spectral Density Stability within 15mins | ＜± 0.03 dBm/nm |
| Output Power Stability within 15mins | ＜±0.01 dB |
| Output Power Stability within 8 hrs | ≤± 0.05 dB |
| Operation Model | CW |
| Fiber Type | Single Mode SFM-28 |
| Operation Temperature | 0 ～ +40℃ |
| Storage Temperature | -30 ～ +80℃ |
| Power Supply | AC 110 ~ 220 V±10%, 50Hz/60Hz, 20W |
| Dimensions | 235mm W, 55 mm H, 320 D mm |
| Weight | 3.0 kg |
