Product Details:
|
| Principle: | 4 Motorized Fiber Knob Loop | Polarization Extinction Ratio: | 40 DB |
|---|---|---|---|
| Rotation Speed Dynamic Range: | 1600 Step | Interface: | RS232 & USB |
| Optical Connector: | FC/PC / FC/APC | Operation Temperature: | 0～ +40℃ |
| Highlight: | Polarization Generator PMD Device,Polarization Generator Dispersion PMD Device |
||
Polarization Mode Dispersion PMD Device Polarization Generator

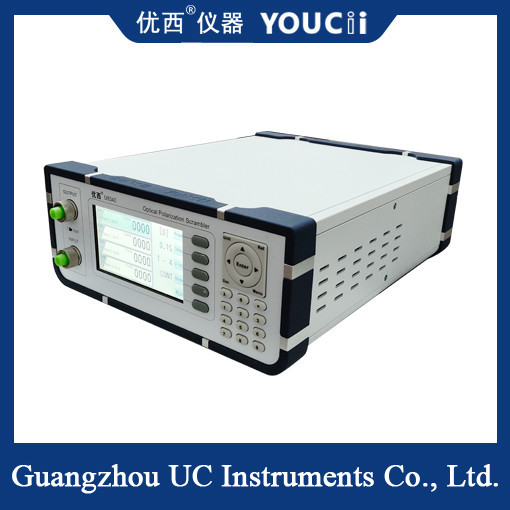

U8340 Motorized Polarization Scrambler is a program motorized control polarization scrambler. Its polarization controlled capability enhances measurement speed, accuracy, and overall prodUtivity. The continuous length of fiber enables high power and ultra-low insertion loss. This design offers a wide range of Auto Scan rates and high incremental angular resolution.
Four-fiber knob loop design has proven to provide excellent control with ultra-low power variations (PDL). This reliable design allows for a wide range of applications from component testing to PMD related activities.
A polarization generator is a device used to produce light waves with a specific polarization state. In the field of optics and optoelectronics, polarization is a very important concept, which describes the direction and mode of vibration of the electric field vector in the light wave. Polarization generators are capable of generating light waves with specific polarization states to meet a variety of application needs.
Specification
| Model | U8340 |
| Principle | 4 Motorized Fiber Knob Loop |
| Wavelength Range | 1200 ~ 1610 nm |
| Insertion Loss | < 1.0 dB |
| Return Loss | > 50dB (PC) / >60dB (APC) |
| Polarization Extinction Ratio | 40 dB |
| PDL | < 0.01 dB |
| Max. Signal Power | +30dBm |
| Max SOP Transit Time | 360°/ sec |
| Rotational Resolution | 0.1125°/ step |
| Angular Accuracy | ±.00024° |
| Angular Repeatability | ±.014° |
| Rotation Speed Dynamic Range | 1600 step |
| Settling Time | 1~99.9 Sec / Continuity |
| Number of AutoScan Rate Settings | 10 |
| Optical Connector | FC/PC / FC/APC |
| Interface | RS232 & USB |
| Power | 100 ~ 240 V AC, 50 - 60 Hz |
| Operation Temperature | 0～ +40℃ |
| Storage Temperature | -30～+80℃ |
| Dimensions | 245 mm W, 105 mm H, 320 mm D |
| Weight | 4.0 kg |
