The ASE Light Source In CL Band Is Amplified By Erbium-Doped Fiber Gain

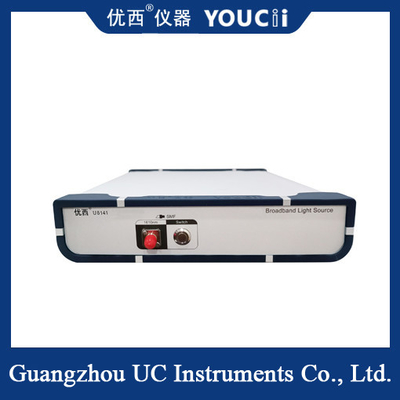

Large Image : The ASE Light Source In CL Band Is Amplified By Erbium-Doped Fiber Gain

Product Details:

Place of Origin:	China
Brand Name:	YOUCII
Certification:	CU,IOS
Model Number:	U8142CL

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	negotiate a price
Packaging Details:	Carton
Delivery Time:	20 work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,T/T
Supply Ability:	20 pcs+per month

Contact Now

The ASE Light Source In CL Band Is Amplified By Erbium-Doped Fiber Gain

Description

Operation Wavelength:	1527 ~ 1610nm	Output Power （Option）:	10mW / 20mW
Spectral Density Stability Within 15mins:	＜± 0.01 DBm/nm	Fiber Type:	Single Mode SFM-28
Power Supply:	AC 110 ~ 220 V±10%, 50Hz/60Hz, 20W	Weight:	2KG
Highlight:	Amplified ASE Light Source , Erbium-Doped Fiber Gain ASE Light Source , CL Band ASE Light Source

The ASE Light Source In CL Band Is Amplified By Erbium-Doped Fiber Gain

U8142CL CL band ASE light source is a high performance broadband light source. It uses erbium-doped fiber gain amplification, spectrum flattening technology, and butterfly package device to form a single band continuous output light source through high stability drive control circuit.

The U8142CL band light source has many remarkable characteristics. First, it has a single-band bandwidth of up to 83nm, providing a wide wavelength coverage. Secondly, this light source has the advantages of high power stability, small size, fast startup and affordable price, making it can play an excellent performance in a variety of application scenarios.

Model #	U8142CL
Operation Wavelength	1527 ~ 1610nm
Spectral Flatness	＜1.5dB
Output Power (Option)	10mW / 20mW
Spectral Density	≥-20dBm/nm
Connector Type	FC/APC (other adaptor can be customized)
Spectral Density Stability within 15mins	＜± 0.01 dBm/nm
Output Power Stability within 15mins	＜±0.01 dB
Output Power Stability within 8 hrs	≤± 0.02 dB
Operation Model	CW
Fiber Type	Single Mode SFM-28
Operation Temperature	0 ～ +40℃
Storage Temperature	-30 ～ +80℃
Power Supply	AC 110 ~ 220 V±10%, 50Hz/60Hz, 20W
Dimensions	235mm W, 55 mm H, 320 D mm
Weight	2.0 kg

The ASE Light Source In CL Band Is Amplified By Erbium-Doped Fiber Gain 0
