Product Details:
|
| Band Option: | CL | Model: | U8112 |
|---|---|---|---|
| Wavelength Resolution: | 1.0 Pm | Power Stability: | ≤ ± 0.01dB, (15min). |
| Relative Intensity Noise: | ＜ -135dB | Operating Temperature: | 0°C To +45°C |
| Highlight: | Adjustable Light Source,PLC Components Adjustable Light Source,Planar Optical Waveguide Adjustable Light Source |
||
Adjustable Light Source For Planar Optical Waveguide PLC Components

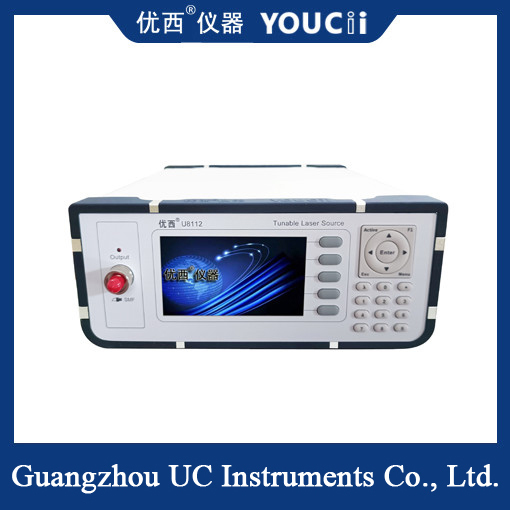

The U8112 benchtop tunable light source is a powerful device, which is mainly used for high precision WDM components, optical waveguide grating array AWG components, planar optical waveguide PLC components, optical amplifier EDFA, DWDM systems and other general optical fiber measurement and applications. It has the characteristics of high wavelength accuracy, large output power, small size, fast start-up and affordable, so that it has a wide range of applications in the field of optical fiber communication and optical measurement.
In addition, the U8112 desktop adjustable light source also provides O-band, C-band, L-band and C+ L-band and other options to meet the needs of different users. This makes the device have a wide application prospect in optical fiber communication, spectrum analysis, optical device testing and other fields.
Specification
| Model # | U8112 | |||
| Band Option | O | C | L | CL |
| Wavelength Tuning range (nm) | 1260~1360 | 1525~1568 | 1568~1610 | 1525~1610 |
| Output Power | ≥ 7dBm | ≥ 13dBm | ≥ 10dBm | ≥ 7dBm |
| Power Adjust Range (Option) | 25 dB | |||
| Wavelength resolution | 1.0 pm | |||
| Absolute wavelength accuracy | ± 10 pm, typ. ＜ 5 pm | |||
| Relative wavelength accuracy | ±5 pm, typ. ± 2 pm | |||
| Wavelength repeatability | ± 2 pm, typ. ±1 pm | |||
| Wavelength stability | ≤± 2 pm (24 hrs at constant temperature) | |||
| Tuning speed | ≤ 2 ms per step | |||
| Power stability | ≤ ± 0.01dB, (15min). | |||
| Power repeatability | ± 0.05dB | |||
| Power linearity | ± 0.3dB | |||
| Power flatness versus wavelength | 0.3dB typ. 0.5dB max. | |||
| Side-mode Suppression ratio | ≥ 35dB | ≥ 45dB | ||
| Relative intensity noise | ＜ -135dB | |||
| Power | AC 100 - 240 V ± 10%, 48 - 66 Hz, 100 VA max. | |||
| Storage temperature | −40°C to +80°C | |||
| Operating temperature | 0°C to +45°C | |||
| Dimensions | 245 mm W, 105 mm H, 320 mm D | |||
| Weight | 2.0 kg | |||
