Product Details:
|
| Test Wavelength: | 1310nm / 1550 Nm | Insertion Loss: | ≤1.2 DB |
|---|---|---|---|
| Wavelength Dependent Loss: | ≤0.25 | Polarization Dependent Loss: | ≤0.02 |
| Working Power Supply: | AC: 85 ～ 264(50/60Hz) | Switching Time: | ≤ 10ms（Adjacent Sequential Switching） |
| Highlight: | Monitoring Optical Switch,Multi-Channel Optical Switch |
||

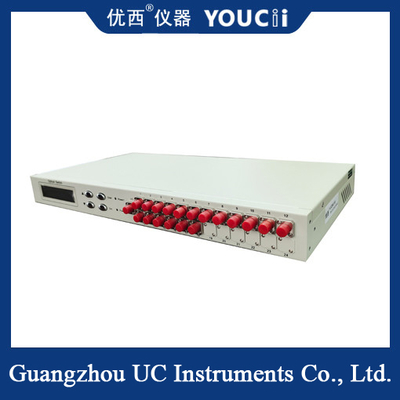

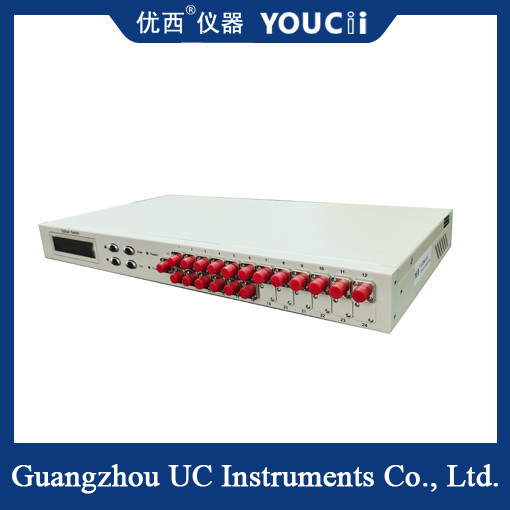

Multi-Channel Multi-Channel Optical Monitoring Optical Switch
U8418 optical switch is a kind of high performance optical switch device, which plays an important role in optical fiber communication and optical network system. It can realize the switching and selection of optical paths, and ensure the stable and efficient transmission of optical signals in the complex network environment.
The U8418 optical switch has excellent performance characteristics, such as low insertion loss, high isolation, fast response time and stable working performance. It can handle high-speed optical signals and maintain low losses to ensure the quality of signal transmission. At the same time, its high isolation characteristics can effectively reduce the interference between optical signals and improve the reliability of the system.
specification
| Type number | U8418 |
| Operating wavelength | 1260 ～ 1650nm |
| Test wavelength | 1310nm / 1550 nm |
| Insertion loss | ≤1.2 dB |
| repeatability | ≤±0.05 dB |
| Return loss | ≥50dB |
| crosstalk | ≥55dB |
| Wavelength dependent loss | ≤0.25 |
| Polarization dependent loss | ≤0.02 |
| Switching time | ≤ 10ms(Adjacent sequential switching) |
| Fiber type | SM(9/125um) |
| Connector form | FC/PC |
| Monitoring port | RJ45,RS-232 |
| Working power supply | AC: 85 ～ 264(50/60Hz) |
| Operating temperature | -5 ～ + 60℃ |
| Storage temperature | -40 ～ + 80°C |
| Chassis type | 19 inch standard 1U rack(483×220×44mm) |
