| Model: | U8523 | Sensor Element: | InGaAs |
|---|---|---|---|
| Power Range: | + 5 ~ -70 DBm | Application Fiber Type: | Standard SM |
| Relative Accuracy – Insertion Loss: | < 0.02 DB Typical | Interface: | RS232 |
| Highlight: | Outlet Insertion Loss Instrument,Single Light Source Insertion Loss Instrument,Dual Wavelength Insertion Loss Instrument |
||
Dual Wavelength Insertion Loss Instrument Single Light Source Outlet

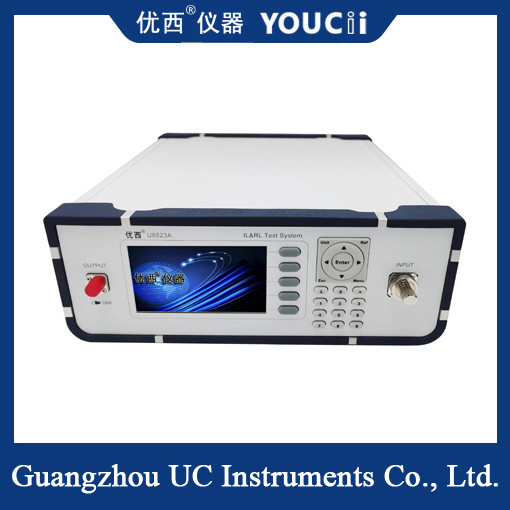

The U8523 dual wavelength insertion loss instrument is a kind of instrument used to measure the insertion loss and return loss of optical fiber connectors and other optical fiber devices.
The U8523 built-in 1310nm/1550nm wavelength light source, in the output port integrated FC/APC ultra-low back reflection connector, can use hybrid jumper to adapt to various connector types of measurement, without affecting the return loss measurement range. When the device under test (DUT) is connected to the jumper DUT output terminal, the return loss of the device under test is displayed.
Specification
| Model # | U8523 |
| Sensor Element | InGaAs |
| Operation Wavelength Range | 1310 / 1550 nm |
| Power Range | + 5 ~ -70 dBm |
| Return Loss Range | 0~60 dB |
| Application Fiber Type | Standard SM |
| Relative Accuracy – Return Loss | ± 0.4 dB |
| Absolute Power Accuracy | ± 0.2 dB |
| Relative Accuracy – Insertion Loss | < 0.02 dB Typical |
| Interface | RS232 |
| Power | 100 ~ 240 V AC |
| Operation Temperature | 0～ +40℃ |
| Storage Temperature | -30～+80℃ |
| Recalibration Period | 2 years |
| Dimensions | 245mm W×105mm H×320mm D |
| Weight | 3.5 kg |
