PC Controls The High-Speed Scanning C-Band Adjustable Light Source Module

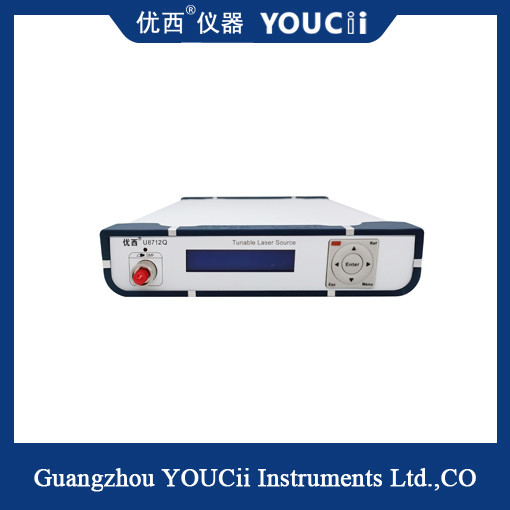

Large Image : PC Controls The High-Speed Scanning C-Band Adjustable Light Source Module

Product Details:

Place of Origin:	China
Brand Name:	YOUCII
Certification:	CU,IOS
Model Number:	U8712Q

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	negotiate a price
Packaging Details:	Carton
Delivery Time:	20 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, T/T
Supply Ability:	20 pcs+per month

Contact Now

PC Controls The High-Speed Scanning C-Band Adjustable Light Source Module

Description

Wavelength Range:	1525.00 To 1568.00 Nm	Absolute Wavelength Accuracy:	±10 Pm, Typ.＜ 4 Pm
Relative Wavelength Accuracy:	± 5 Pm, Typ. ± 2 Pm	Power Repeatability:	± 0.05dB
Output Power:	≥12dBm	Sweep Speed:	≤25us Per Step（40,000 Step/s）
Highlight:	PC Controls Light Source Module , Adjustable Light Source Module , C-Band Light Source Module

PC Controls The High-Speed Scanning C-Band Adjustable Light Source Module

The function of U8712Q PC control of high-speed scanning tunable light source module is mainly reflected in the measurement and application of high-precision fiber optical components. It enables high-precision testing of key components such as wavelength division multiplexing (DWDM) components, optical waveguide grating arrays (AWG) components, planar optical waveguide (PLC) components, and optical amplifiers (EDFA).

In addition, this module is especially suitable for the rapid scanning test of fiber Bragg grating sensors, providing researchers and technicians with accurate and efficient test data to help them better understand and optimize the performance of fiber optic optical systems.

At the same time, the U8712Q module also has the function of connecting with a computer, through the USB cable and the PC control software provided by Youxi instrument, users can easily communicate and control, forming a tunable laser light source measurement system with high precision, large power, small size, fast start and affordable price.

Specification

Model #	U8712Q
Wavelength range	1526.00 to 1568.00 nm
Output Power	≥12dBm
Wavelength resolution	1.0 pm
Absolute wavelength accuracy	±10 pm, Typ.＜ 4 pm
Relative wavelength accuracy	± 5 pm, Typ. ± 2 pm
Wavelength repeatability	±2 pm, Typ. ± 1 pm
Wavelength stability	≤ ± 2 pm
Sweep speed	≤25us per step(40,000 step/s)
Power stability	± 0.01dB, 15min；±0.05,1 hour；±0.1 dB, 24 hours.
Power repeatability	± 0.05dB
Power linearity	± 0.3dB
Power Over wavelength Ripple	0.3dB typ., 0.5dB max.
Side-mode Suppression ratio	≥ 45 dB
Output optical interface	PM, FC/APC or FC/PC connector
Interface	RS232 or USB
Output trig port	BNC trig
Power	3.3 V; 4.5A
Dimensions	235 mm W, 55mm H, 165 mm D
Weight	1.0 kg

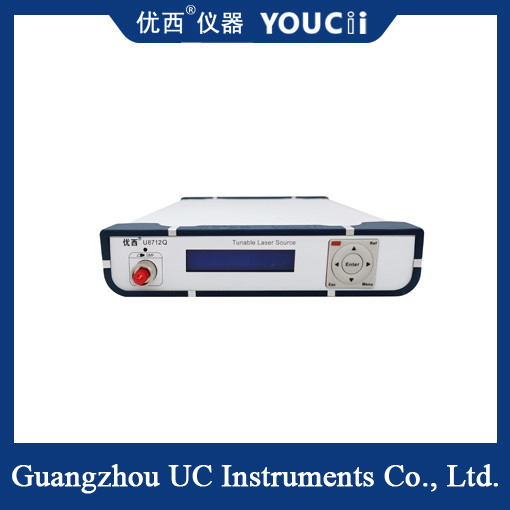

PC Controls The High-Speed Scanning C-Band Adjustable Light Source Module 0
