Product Details:
|
| Material: | Metal | Dimension: | 1U |
|---|---|---|---|
| Laser Type: | SLED | Spectral Range: | 1260-1360nm |
| Central Wavelength: | 1310nm | Output Power: | ≥12 DBm |
| Spectral Density: | ≥-15 DBm/nm | ||
| Highlight: | O-Band SLED Broadband Light Source,SLED Broadband Light Source |
||

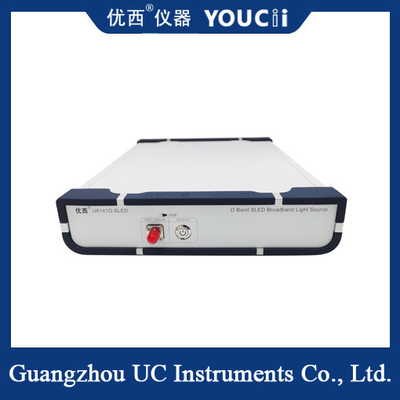

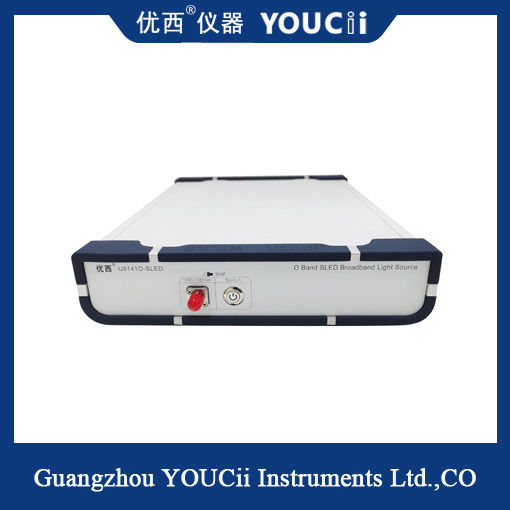

The Output Power Of O-Band SLED Broadband Light Source Is Stable
Product characteristics
Spectral range: The spectral range of O-band SLED broadband light source usually covers the wavelength range of 1260-1360nm, which is suitable for O-band optical fiber communication and sensing systems.
High power stability: Through the unique ATC and APC circuit control, ensure the stability of the output power and spectral lines.
Wide spectral range: Although the spectral bandwidth in the SLED broadband light source may be narrow (such as 6nm to 100nm), the combination of multiple SLED lasers and broadband coupling technology can achieve a wide spectrum output.
Low coherence: Low coherence helps to reduce interference effects and improve measurement accuracy.
Module and desktop optional: The product offers two types of packaging, module and desktop, to meet the needs of different application scenarios.
Intelligent operation and remote control: provides a simple and intelligent operation interface, supports remote control, convenient user operation and management.
| Model # | U8141-O |
|
Operation Wavelength |
1260~ 1360 nm |
| Central wavelength | 1310nm |
| Output Power | ≥12 dBm |
| Spectral Density | ≥-15 dBm/nm |
| Connector Type | FC/APC (other adaptor can be customized) |
|
Spectral Density Stability within 15mins |
＜± 0.03 dBm/nm |
|
Output Power Stability within 15mins |
＜±0.01 dB |
|
Output Power Stability within 8 hrs |
≤± 0.05 dB |
| 工作模式 Operation Model | CW |
| 光纤类型 Fiber Type | Single Mode SFM-28 |
| 工作温度 Operation Temperature | 0 ～ +40℃ |
| Storage Temperature | -30 ～ +80℃ |
| Power Supply | AC 110 ~ 220 V±10%, 50Hz/60Hz, 20W |
| Dimensions | 235mm W, 55 mm H, 320 D mm |
| Weight | 3.0 kg |
Application field
Optical fiber sensing system: The O-band SLED broadband light source plays an important role in optical fiber sensing technology, providing high-precision optical signals for the measurement of physical quantities such as temperature, pressure, and deformation.
Passive device manufacturing and testing: It is also widely used in fiber optic gyro, optical test instrument and other fields.
Biomedical imaging: Although this paper does not directly mention the application of O-band SLED broadband light source in biomedical imaging, due to its high power, wide spectrum and low coherence characteristics, it is expected to play a role in biomedical imaging technologies such as optical coherence tomography (OCT).
