Product Details:
|
| Number Of Channels: | 8 | Material: | Metal |
|---|---|---|---|
| Weight: | 4kg | Operation Temperature: | 0 ～ +40℃ |
| Storage Temperature: | -30 ～ +80℃ | Return Loss: | ＞ 40 DB |
| Linearity (power): | ≤ ± 0.06 DB (1200 Nm ~ 1610 Nm, 0~ -50dBm) | ||
| Highlight: | Optical Signal Monitoring Device Power Meter,Display Optical Power Meter,Eight-Channel Optical Power Meter |
||

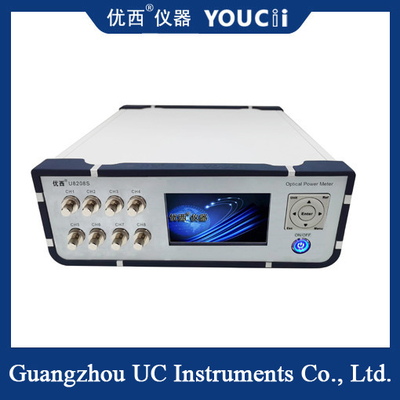

Eight-Channel Optical Power Meter With Display Optical Signal Monitoring Device
An eight-channel optical power meter with display is an instrument specifically designed to measure optical power. It has multiple channels, can measure multiple optical signals simultaneously, and is equipped with a display screen to visually display the measurement results.
Product characteristics
Multi-channel design: The eight-channel design allows for simultaneous monitoring of multiple optical signals, increasing test efficiency.
High-precision measurement: Advanced detection circuits and technologies are used to ensure the accuracy and reliability of measurement results.
Color LCD display: Equipped with a 3.5 inch or similar size color LCD screen, the display interface is clear and easy to operate.
Programmable control: Support USB and RS232 and other communication interfaces, can be controlled by the program to complete all the test process, easy to build automatic measurement and control system.
Independent working wavelength setting: Each channel can be independently set working wavelength to meet different test requirements.
Application field
Eight-channel optical power meter with display screen is widely used in communication, optoelectronics, scientific research and other fields, especially in the test and maintenance of optical fiber communication system plays an important role. It can be used to measure parameters such as optical fiber attenuation, optical power distribution, and optical device performance, helping engineers and technicians quickly and accurately locate problems and take appropriate measures.
Technical specification
| Model # | U8201 | U8202 | U8204 | U820XH |
| Number of Channels | 1 | 2 | 4 | X |
| Power Range | +10 ~ -65dBm | +25 ~ -50dBm | ||
| Wavelength Range | 850 ~ 1700 nm | |||
| Calibration Wavelength | 850/980/1310/1490/1550/1610 nm | |||
| Application Fiber Type | Standard SM and MM up to 62.5 um core size | |||
|
Absolute Uncertainty (accuracy) at reference condition |
± 4% (1200 nm ~ 1610 nm) | |||
|
Relative Uncertainty (accuracy) at reference condition |
＜ 0.02 dB Typical | |||
| Linearity (power) | ≤ ± 0.06 dB (1200 nm ~ 1610 nm, 0~ -50dBm) | |||
| Return Loss | ＞ 40 dB | |||
| Operation Temperature | 0 ～ +40℃ | |||
| Storage Temperature | -30 ～ +80℃ | |||
| Recalibration Period | 2 years | |||
| Dimensions | 245 mm W, 105 mm H, 320 mm D | |||
| Weight | 2.0 kg |
|||
Precautions for use
Correct connection: Before using the optical power meter, ensure that the optical power meter is properly connected to the optical fiber or optical device to be measured to avoid measurement errors caused by loose interfaces or improper connection.
Calibration: Calibrate the optical power meter periodically to ensure the accuracy of the measurement results. The specific calibration method can refer to the instrument manual or consult the manufacturer's technical personnel.
Dust and moisture: Keep the working environment of the optical power meter clean and dry to avoid dust and moisture damage to the instrument.
Battery power: Check the battery power to ensure that the battery power is sufficient during the test to avoid measurement interruption or data loss due to insufficient power.
