10mm Large Light Sensitive Surface USB Optical Power Meter InGaAs Sensor

I'm Online Chat Now

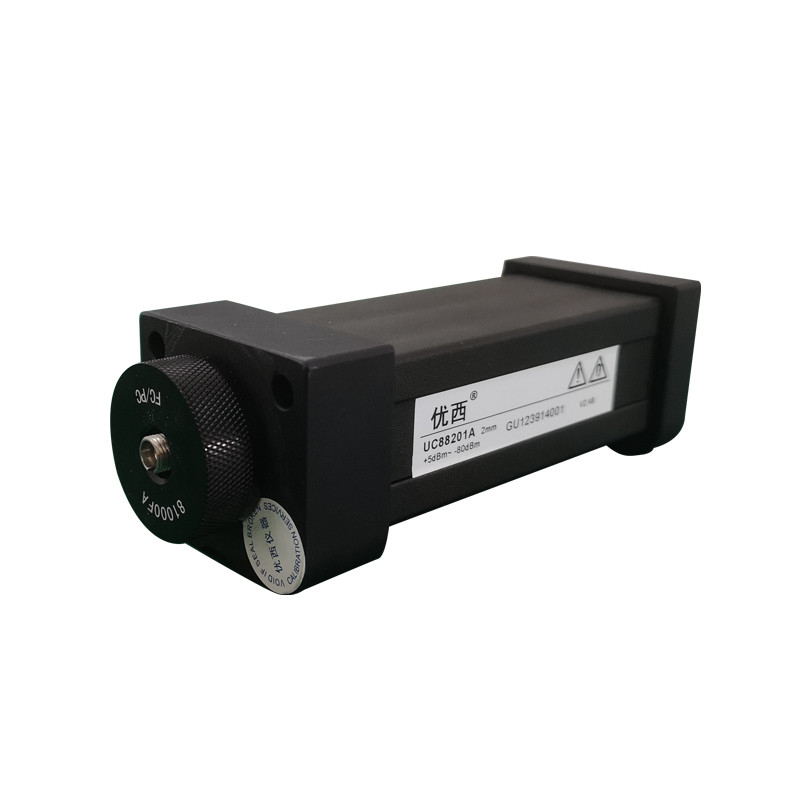

10mm Large Light Sensitive Surface USB Optical Power Meter InGaAs Sensor

10mm Large Light Sensitive Surface USB Optical Power Meter InGaAs Sensor
10mm Large Light Sensitive Surface USB Optical Power Meter InGaAs Sensor

Large Image :  10mm Large Light Sensitive Surface USB Optical Power Meter InGaAs Sensor

Product Details:
Place of Origin: CHINA
Brand Name: YOUCii
Model Number: U8721-10
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: negotiate a price
Packaging Details: Carton
Delivery Time: 20 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 15pcs+per month

10mm Large Light Sensitive Surface USB Optical Power Meter InGaAs Sensor

Description
Sensor Element: InGaAs Wavelength Range: 900 ~ 1700 Nm
Calibration Wavelength: 980/1310/1490/1510~1640nm 4/5000 Continuous Calibration Power Range: + 10 ~ -55 DBm
Power Sampling Period(rate): 100 Us(10KHz) Application Fiber Type: Standard SM And MM Up To 62.5 Um Core Size
Uncertainty (accuracy) At Reference Condition: < 0.02 DB Typical Values
Highlight:

900 nm USB Optical Power Meter

,

900 nm optical light meter

,

Optical Power Meter InGaAs Sensor

U8721-10 10mm Large Light Sensitive Surface USB Optical Power Meter





Model# U8721-10
Sensor Element InGaAs
Wavelength Range 900 ~ 1700 nm
Calibration wavelength 980/1310/1490/1510~1640nm
Continuous calibration
Power Range + 10 ~ -55 dBm

Power sampling period(rate)

100 us(10KHz)

Application Fiber Type

Standard SM and MM up to 62.5 um core size

Absolute

Uncertainty (accuracy) at reference condition

± 4% (1200 nm ~ 1610 nm)

Relative

Uncertainty (accuracy) at reference condition

< 0.02 dB Typical values
Linearity (power) ± 0.02 dB (1200 ~ 1610 nm, + 0 ~ -50dBm)
Return Loss  40 dB
Calibration period 2 years
Optical Input Interface

Supporting bare fiber joint or FC/LC/SC Adapter

Communication Interface USB Trig + BNC Analog output
Operation Temperature 0 ~ +40℃
Storage Temperature -30 ~ +80℃
Dimensions 52mm H,60 mm W,150 mm D
Weight 1.0 kg



FAQ
Q: Are you a factory manufacturer?
A: Yes we are manufacturer with 13 years experience in this industry and supplied many good quality products.
Q: Where is your main market?
A: Asia, Europe, America, Middle-East, Africa and other countries and regions.
Q:What is your minimum order quantity (MOQ)?
A: As a standard policy, we accept MOQ of 1set, and mixed items available, it still needs to confirm with our sales according to different product lines.
Q: Can I customize the size and color of the case?
A: Yes. We can discuss it .
Q: Can I buy some samples first before main orders? Is the sample fee refundable?
A: Yes, sample fee and shipment fee should be paid in advance .
Q: How long is the Production Lead Time?
A: 5 days for stock products, different products have different delivery times, according to the actual situation.
