Product Details:
|
| Wavelength Range: | 850 ~ 1700 Nm | Power Sampling Period（rate）: | 100 Us（10KHz） |
|---|---|---|---|
| Calibration Wavelength: | 850/980/1310/1490/1550/1610 Nm | Application Fiber Type: | Standard SM And MM Up To 62.5 Um Core Size |
| Uncertainty (accuracy) At Reference Condition: | ＜ 0.02 DB Typical | Linearity (power): | ≤ ± 0.06 DB (1200 Nm ~ 1610 Nm, 0~ -50dBm) |
| Communication Interface: | RS232 | ||
| Highlight: | digital power meter 1310nm,62.5 um core fiber optic meter,1490nm digital power meter |
||

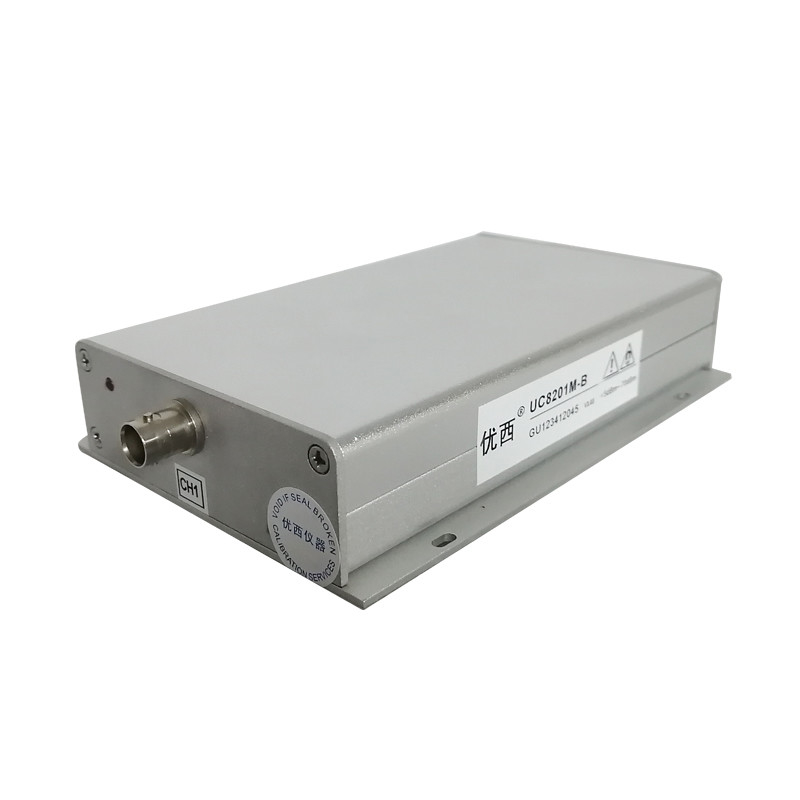

U8201M Single Channel Power Meter Module Power Range +5 ~ -70dBm Small Volume
| Model # | U8201M | |||
| Number of Channels | 1 | |||
| Power Range | +5 ~ -70dBm | |||
| Wavelength Range | 850 ~ 1700 nm | |||
|
Power sampling period(rate) |
100 us(10KHz) | |||
| Calibration Wavelength | 850/980/1310/1490/1550/1610 nm | |||
| Application Fiber Type | Standard SM and MM up to 62.5 um core size | |||
|
Absolute Uncertainty (accuracy) at reference condition |
± 4% (1200 nm ~ 1610 nm) | |||
|
Relative Uncertainty (accuracy) at reference condition |
＜ 0.02 dB Typical | |||
| Linearity (power) | ≤ ± 0.06 dB (1200 nm ~ 1610 nm, 0~ -50dBm) | |||
| Return Loss | ＞ 40 dB | |||
| Communication Interface | RS232 | |||
| Sampling Data Storage | Support online continuous 2-hour data collection and saving, and draw power curves | |||
| Power Supply | DC5V3A,100~240V AC Power adapter | |||
| Operation Temperature | 0 ～ +40℃ | |||
| Storage Temperature | -30 ～ +80℃ | |||
| Recalibration Period | 2 years | |||
| Dimensions | 100 mm W, 30 mm H, 165 mm D | |||
| Weight | 1.0 kg | |||
U8201M Double channel Mini optical power meters offer superior performance, economical and practical for general purpose of fiber optical test and measurement applications. It is specifically designed for use in high volume production lines.
UC8201M Mini optical power meter test systems are efficient, compact sized, fast-starting, and affordable. They provide low power, high power, single channel and dual channel optical power meter options.
The front of the instrument
CH1/CH2 is an optical fiber connector
The back of the instrument
