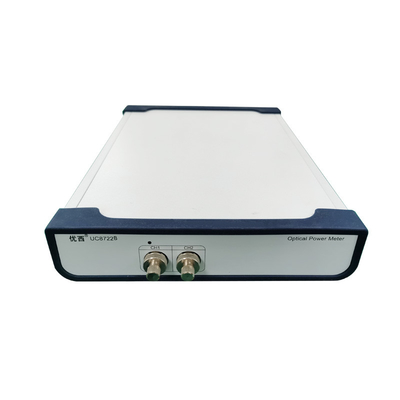

Dual Channel High Power Optical Power Meter 235mm X 55mm X 320mm Fast Start

I'm Online Chat Now

Dual Channel High Power Optical Power Meter 235mm X 55mm X 320mm Fast Start

Dual Channel High Power Optical Power Meter 235mm X 55mm X 320mm Fast Start
Dual Channel High Power Optical Power Meter 235mm X 55mm X 320mm Fast Start

Large Image :  Dual Channel High Power Optical Power Meter 235mm X 55mm X 320mm Fast Start

Product Details:
Place of Origin: CHINA
Brand Name: YOUCii
Model Number: U8722B
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: negotiate a price
Packaging Details: Carton
Delivery Time: 20 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10pcs+per month

Dual Channel High Power Optical Power Meter 235mm X 55mm X 320mm Fast Start

Description
Number Of Channels: 2/4/8 Sensor Element: InGaAs
Wavelength Range: 850 ~ 1700 Nm Calibration Wavelength: 1310/1490/1550/1625
Power Range: +25~-55dBm Sampling Period: 100us (10KHz)
Uncertainty (accuracy): ± 4% (1200 Nm ~ 1610 Nm) Relative Uncertainty (accuracy): < 0.02 DB Typical
Highlight:

Optical Power Meter 235mm X 55mm X 320mm

,

Dual Channel optical power metre

,

1700 nm Optical Power Meter

U8722B  Dual-Channel High-Power Optical Power Meter Small Size Fast Start



Model # U8722B U8724B U8728B
Number of Channels 2 4 8
Sensor Element InGaAs
Wavelength Range 850 ~ 1700 nm
Calibration Wavelength 1310/1490/1550/1625
Power Range +25~-55dBm
Sampling period 100us (10KHz)
Application Fiber Type Standard SM and MM up to 62.5 um core size
Uncertainty (accuracy) ± 4% (1200 nm ~ 1610 nm)
Relative Uncertainty (accuracy) < 0.02 dB Typical
Linearity (power)  ± 0.06 dB (1200 nm ~ 1610 nm, 0~ -60dBm)
Return Loss 40 dB
Communication Interface RS232, USB,Control by PC
Operation Temperature 0 ~ +40℃
Storage Temperature -30 ~ +80℃
Recalibration Period 2 years
Dimensions 235 mm W, 55mm H, 320 mm D
Weight 3.0 kg



U8722B dual-channel high-power optical power meter is mainly used for high precision wavelength division multiplexing DWDM components, optical waveguide grating array AWG components, plane optical waveguide PLC components, optical amplifier and other general optical measurement and application, superior performance, economical and practical.
UC8722B dual channel optical power meter measurement system has high performance, small size, fast start and affordable characteristics, Guangzhou UC can provide low power, high power, 4 channels and 8 channels for choice, can also provide customers with up to 64 channels combined test system.



FAQ
Q: Are you a factory manufacturer?
A: Yes we are manufacturer with 13 years experience in this industry and supplied many good quality products.
Q: Where is your main market?
A: Asia, Europe, America, Middle-East, Africa and other countries and regions.
Q:What is your minimum order quantity (MOQ)?
A: As a standard policy, we accept MOQ of 1set, and mixed items available, it still needs to confirm with our sales according to different product lines.
Q: Can I customize the size and color of the case?
A: Yes. We can discuss it .
Q: Can I buy some samples first before main orders? Is the sample fee refundable?
A: Yes, sample fee and shipment fee should be paid in advance .
Q: How long is the Production Lead Time?
A: 5 days for stock products, different products have different delivery times, according to the actual situation.
