Product Details:
|
Number Of Channels: | 2/4/8 | Sensor Element: | InGaAs |
---|---|---|---|
Dimensions: | 235 Mm W, 55 Mm H, 320 Mm D | Recalibration Period: | 2 Years |
Storage Temperature: | -30~+80 ℃ | Operation Temperature: | 0~ +40 ℃ |
Communication Interface: | RS232, USB,Control By PC | Return Loss: | > 40 DB |
Highlight: | 4 Channel optical power metre,optical light meter 1700 nm,optical power metre 850 nm |

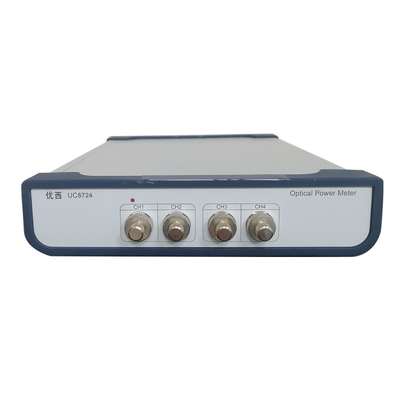

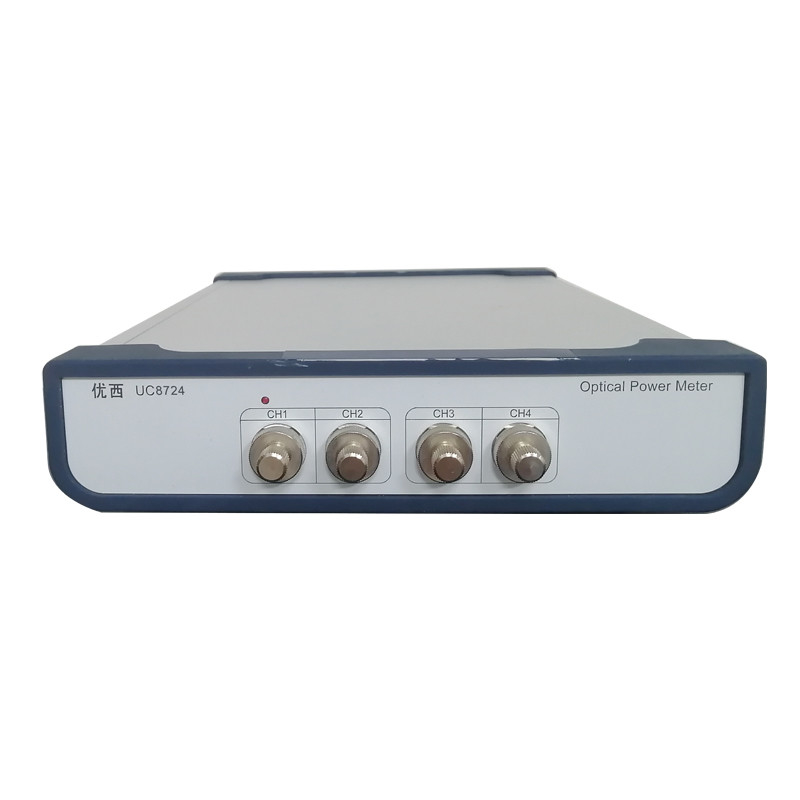

U8724A 4 Channel Power Meter Multiple Channels OptionalHigh Stability
Model # | U8722A | U8724A | U8728A |
Number of Channels | 2 | 4 | 8 |
Sensor Element | InGaAs | ||
Wavelength Range | 850 ~ 1700 nm | ||
Calibration Wavelength | 850/980/1300/1310/1490/1550/1626/1650 nm | ||
Power Range | +10 ~ -65dBm | ||
Sampling period | 100us (10KHz) | ||
Application Fiber Type | Standard SM and MM up to 62.5 um core size | ||
Uncertainty (accuracy) | ± 4% (1200 nm ~ 1610 nm) | ||
Relative Uncertainty (accuracy) | < 0.02 dB Typical | ||
Linearity (power) | ≤ ± 0.05 dB (1200 nm ~ 1610 nm, 0~ -60dBm) | ||
Return Loss | >40 dB | ||
Communication Interface | RS232, USB,Control by PC | ||
Operation Temperature | 0 ~ +40℃ | ||
Storage Temperature | -30 ~ +80℃ | ||
Recalibration Period | 2 years | ||
Dimensions | 235 mm W, 55mm H, 320 mm D | ||
Weight | 3.0 kg |
U8724A 4 Channel optical power meters offer superior performance for the testing of DWDM components, AWG &PLC components, optical amplifiers, and other general purpose of fiber optical test and measurement applications. It is specifically designed for use in high volume production lines.
U8724A 4 optical power meter test systems are efficient, compact sized, fast-starting, and affordable. Guangzhou UC can provide low power, high power 4 channel and 8 channel optical power meter for choice, and can also provide up to 64 channel combination test system for customers.
FAQ
Q: Are you a factory manufacturer?
A: Yes we are manufacturer with 13 years experience in this industry and supplied many good quality products.
Q: Where is your main market?
A: Asia, Europe, America, Middle-East, Africa and other countries and regions.
Q:What is your minimum order quantity (MOQ)?
A: As a standard policy, we accept MOQ of 1set, and mixed items available, it still needs to confirm with our sales according to different product lines.
Q: Can I customize the size and color of the case?
A: Yes. We can discuss it .
Q: Can I buy some samples first before main orders? Is the sample fee refundable?
A: Yes, sample fee and shipment fee should be paid in advance .
Q: How long is the Production Lead Time?
A: 5 days for stock products, different products have different delivery times, according to the actual situation.
