High Speed Optical Power Meter 850 / 980 / 1310 / 1510~1640nm

I'm Online Chat Now

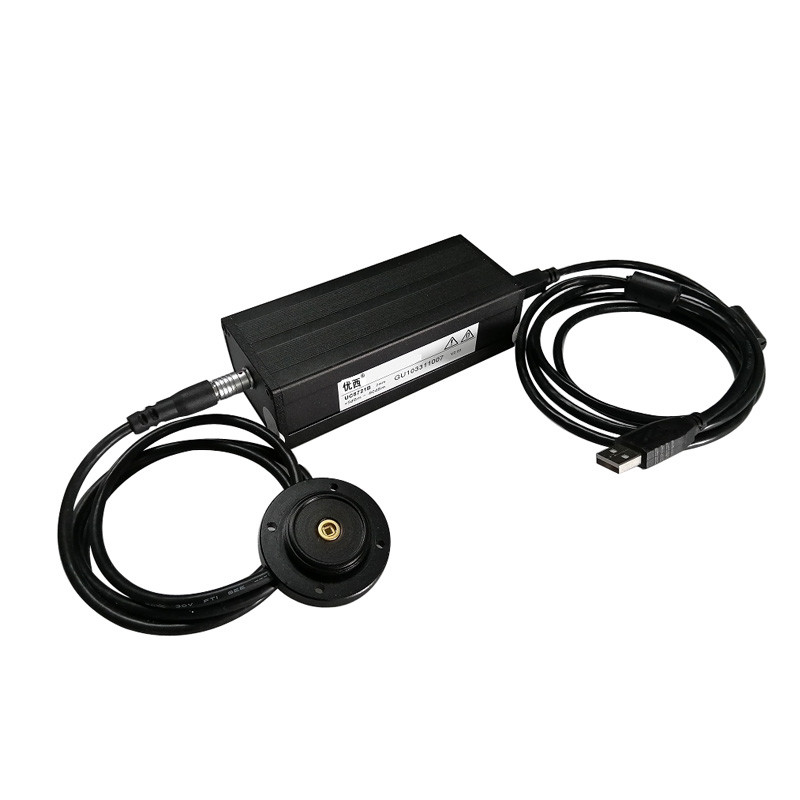

High Speed Optical Power Meter 850 / 980 / 1310 / 1510~1640nm

High Speed Optical Power Meter  850 / 980 / 1310 / 1510~1640nm
High Speed Optical Power Meter  850 / 980 / 1310 / 1510~1640nm

Large Image :  High Speed Optical Power Meter 850 / 980 / 1310 / 1510~1640nm

Product Details:
Place of Origin: CHINA
Brand Name: YOUCii
Model Number: U8721B
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: negotiate a price
Packaging Details: Carton
Delivery Time: 21 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 25pcs+per month

High Speed Optical Power Meter 850 / 980 / 1310 / 1510~1640nm

Description
Shape: PD External Sensor Element: InGaAs
Wavelength Range: 850 ~ 1700 Nm Calibration Wavelength: 850 / 980 / 1310 / 1510~1640nm Continuous Calibration
Power Range (dBm): + 5 ~ -70 Power Sampling Period(Rate): 100 Us(10KHz)
Application Fiber Type: Standard SM And MM Optical Input Interface: Supporting Bare Fiber Joint Or FC/LC/SC Adapter
Highlight:

Optical Power Meter 850 nm

,

light source power meter 1310nm

,

Optical Power Meter 980nm

High speed optical power meter 850 / 980 / 1310 / 1510~1640nm Continuous calibration





Model #

U8721B
Sensor Element InGaAs
Wavelength Range 850 ~ 1700 nm
Calibration wavelength 850 / 980 / 1310 / 1510~1640nm Continuous calibration
Power Range (dBm) + 5 ~ -70

Power sampling period(Rate)

100 us(10KHz)
Application Fiber Type Standard SM and MM
optical Input Interface Supporting bare fiber joint or FC/LC/SC Adapter

Absolute

Uncertainty (accuracy) at reference condition

± 4% (1200 nm ~ 1610 nm)

Relative

Uncertainty (accuracy) at reference condition

< 0.02 dB Typical values
Linearity (power) ± 0.06dB (1200 ~ 1610 nm, + 0 ~ -60dBm)
Return Loss 40 dB
Communication Interface USB
calibration period 2 years
Operation Temperature 0 ~ +40℃
Storage Temperature -30 ~ +80℃
Dimensions 52mm H,60 mm W,150 mm D
Weight 1.0 kg



The data type



Boolean ,The value is only 0 or 1.

Integer,Different commands have different value ranges.

Float,It is in decimal format.

String.



FAQ
Q: Are you a factory manufacturer?
A: Yes we are manufacturer with 13 years experience in this industry and supplied many good quality products.
Q: Where is your main market?
A: Asia, Europe, America, Middle-East, Africa and other countries and regions.
Q:What is your minimum order quantity (MOQ)?
A: As a standard policy, we accept MOQ of 1set, and mixed items available, it still needs to confirm with our sales according to different product lines.
Q: Can I customize the size and color of the case?
A: Yes. We can discuss it .
Q: Can I buy some samples first before main orders? Is the sample fee refundable?
A: Yes, sample fee and shipment fee should be paid in advance .
Q: How long is the Production Lead Time?
A: 5 days for stock products, different products have different delivery times, according to the actual situation.
