Product Details:
|
| Optical Interface: | FC/PC | Switching Type: | Latching |
|---|---|---|---|
| Voltage Type: | 3.0V Or 5.0V | Repeatability: | ≤±0.02 DB |
| Weight: | 2.5kg | Chassis Size: | 290mm*120mm*260mm |
| Dimensions: | 1U, 19-inch Rack Mountable | ||
| Highlight: | Multi-Channel Single-Mode Optical Switch,Compact Single-Mode Optical Switch,Economical Single-Mode Optical Switch |
||

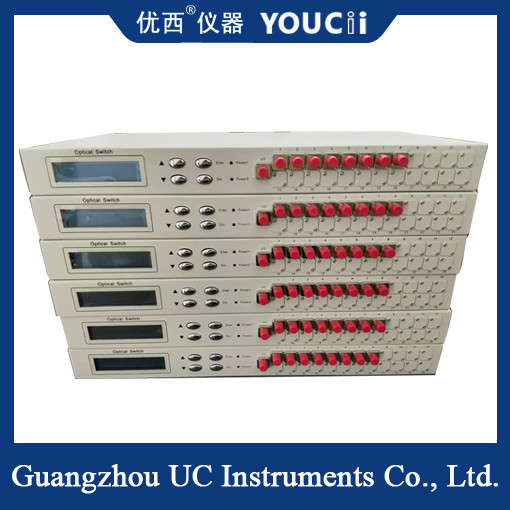

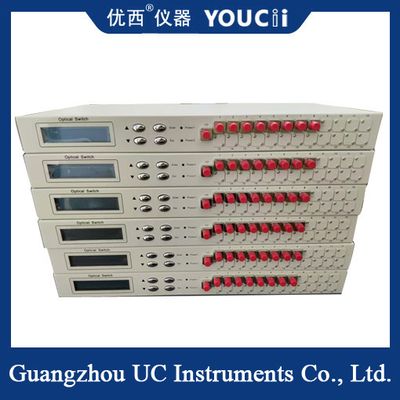

Multi-Channel Economical Single-Mode Optical Switch Is Cost-Effective
The 8-channel economical single-mode optical switch is an optical switching device with 8 independent channels, specifically designed for use in single-mode optical fiber systems. It can quickly switch optical signals between different optical paths, and is widely used in optical fiber communication, optical network testing, optical fiber sensing and other fields.
Peculiarity
Multi-channel design: With 8 independent channels, multiple optical signals can be processed simultaneously, improving the flexibility and efficiency of the system.
Single-mode Fiber support: Designed for single-mode fiber, suitable for long distance, high speed fiber optic communication systems.
Economical: Under the premise of ensuring performance, the use of economic and reasonable design and materials, reduce costs, suitable for users with limited budgets.
Fast switching: It has the ability to switch optical signals quickly, the response time is short, and it meets the application scenarios with high real-time requirements.
High reliability: The use of high-quality optical components and structural design to ensure long-term stable operation and reduce the failure rate.
Easy integration: Standard interfaces and protocols are usually designed to facilitate integration and interconnection with other optical fiber devices.
specification
| Type number | U8418 |
| Operating wavelength | 1260 ～ 1650nm |
| Test wavelength | 1310nm / 1550 nm |
| Insertion loss | ≤1.2 dB |
| repeatability | ≤±0.05 dB |
| Return loss | ≥50dB |
| crosstalk | ≥55dB |
| Wavelength dependent loss | ≤0.25 |
| Polarization dependent loss | ≤0.02 |
| Switching time | ≤ 10ms(Adjacent sequential switching) |
| Fiber type | SM(9/125um) |
| Connector form | FC/PC |
| Monitoring port | RJ45,RS-232 |
| Working power supply | AC: 85 ～ 264(50/60Hz) |
| Operating temperature | -5 ～ + 60℃ |
| Storage temperature | -40 ～ + 80°C |
| Chassis type | 19 inch standard 1U rack(483×220×44mm) |
Application scenario
The 8-channel economical single-mode optical switch is suitable for a variety of application scenarios, including but not limited to:
Optical fiber communication system: Fast switching and routing of optical signals in optical fiber communication networks.
Optical network testing: Used in optical fiber test systems to simulate and test the switching and transmission performance between different optical paths.
Optical fiber sensing system: The acquisition, transmission and processing of optical signals are realized in the optical fiber sensing network.
