Product Details:
|
| Weight(g): | 285 | Dimension(mm): | 200*90*50 |
|---|---|---|---|
| Storage Temperature(℃): | -25～+70 | Operation Temperature(℃): | -10～+60 |
| Battery Operating Time (h): | 200 Without Backlight | Power Adapter(V): | 8.4 |
| Alkaline Battery: | 3*AA,1.5V | ||
| Highlight: | 1625nm Handheld optical power meter,Handheld Optical Power Meter |
||

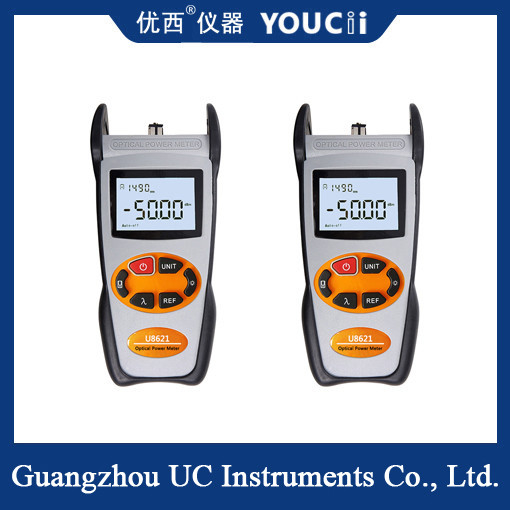

Handheld optical power meter 850/1300/1310/1490/1550/1625nm
The hand-held optical power meter is a test instrument commonly used in optical fiber communication system.
Function: Evaluate the performance of optical devices by measuring the power of transmitter or optical network; Used in combination with a stable light source, it can measure connection losses, verify continuity, and evaluate the transmission quality of fiber links.
Product characteristics
User self-calibration function: Some hand-held optical power meters have user self-calibration function, which is convenient for users to perform calibration operations.
Long life battery: Built-in rechargeable lithium battery provides up to hundreds of hours of continuous operation time.
Multiple display modes: Support linear (mW) and non-linear indicators (dBm) display at the same time to meet different measurement needs.
Universal interface: Equipped with universal interfaces such as FC/SC/ST, you can connect different types of optical fibers without complex conversion.
Automatic shutdown function: Optional automatic shutdown function to save power.
Backlight display: Optional backlight display for easy use at night or in dark environments.
Specifications
| Calibration Wavelength(nm) | 850/1300/1310/1490/1550/1625 | |
| Detector type | InGaAs | |
| Measurement Range(dBm) | Type A:-70～+6 | Type C:-50～+26 |
| Uncertainty (dB) | ±0.15(3.5%) | |
| Display resolution(dB) | 0.01 | |
| Frequency ID(Hz) | 270,1K,2K | |
| Date Storage Capacity | 1000 | |
| Communication Port | USB | |
| Standard Connector | FC/PC or FC,SC interchangeable | |
| Alkaline battery | 3*AA,1.5V | |
| Power Adapter(V) | 8.4 | |
| Battery Operating time (h) | 200 without backlight | |
| Operation Temperature(℃) | -10～+60 | |
| Storage Temperature(℃) | -25～+70 | |
| Dimension(mm) | 200*90*50 | |
| Weight(g) | 285 | |
Matters needing attention
When using the handheld optical power timer, pay attention to safe operation to avoid direct laser eyes or skin.
Calibrate the instrument regularly to ensure the accuracy of the measurement results.
Keep the instrument clean and dry, and avoid use in humid or corrosive environments.
