Product Details:
|
| Simple Module: | 1310/1550 Nm | Snr: | ≥25dB |
|---|---|---|---|
| Screen Size: | 5.6 | Data Rate Range: | 25~32G |
| Test Distance: | 50Km | Type: | Handheld |
| Magnification: | 224 Times | ||
| Highlight: | Construction Tool OTDR,Multifunctional Tester OTDR,Fiber Construction Tool OTDR |
||

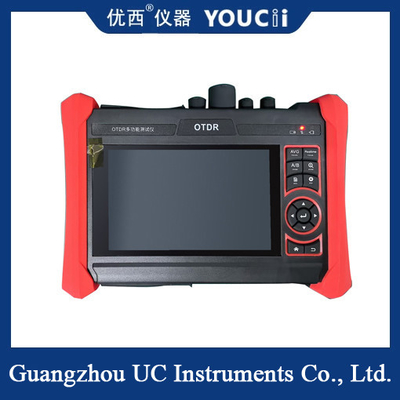

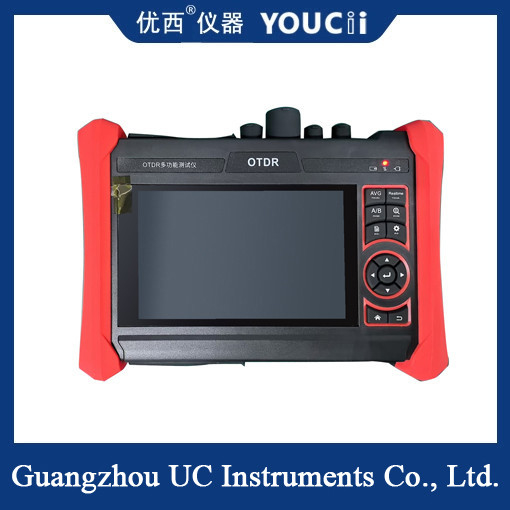

OTDR Multifunctional Tester Optical Fiber Construction Tool
OTDR is an instrument to understand the uniformity, defect, fracture, joint coupling and other properties of optical fiber through the analysis of the measuring curve. It is used to measure the attenuation of optical fiber, attenuation of connector and fault locator, and view the loss distribution along the length of optical fiber, it is an essential tool in the construction, maintenance and monitoring of optical fiber.
| OTDR Technical Specifications | ||||||||
| Wavelength (nm) Optional * | 1310/1550 | 1610 | ||||||
| Dynamic range(dB)2 Optional* | 28/26 | 30/28 | 32/30 | 34/34 | 28 | 30 | 32 | 34 |
| Pulse width (ns) | 5,10,20,30,50,80,160,300,500,800,1000,2000,4000,6000,10000,20000 | |||||||
| Testing range | ≤150 Km | |||||||
| Event blind zone (m)3 | ≤2m | |||||||
| Attenuation blind zone (m)3 | ≤10m | |||||||
| Linearity (dB/dB) | ±0.05 dB/ dB | |||||||
| Loss threshold (dB) | 0.05 | |||||||
| Loss resolution ratio (dB) | 0.01 | |||||||
| Minimum distance resolution | 0.05 | |||||||
| Sampling point(K) | 32-128 | |||||||
| Distance uncertainty (m) | ±(1 m + 5×10-5× distance + sampling interval) | |||||||
| Distance scope (km) | 0.5,1,2,5,10,25,50,100,200 | |||||||
| Typical real-time refreshing duration | 1s | |||||||
| File format | SOR standard format/PDF/EXCEL | |||||||
| Measurement duration | 5sec, 10sec, 15sec, 30sec, 1min, 2min, and 3min are selectable | |||||||
| Storage | FLASH (EMMC)8G + TF card | |||||||
| Interface type | SC-PC | |||||||
|
Remarks: 1. The technical specification describes the ensured performance of the instrument when using typical PC model connector to measure, without considering the uncertainty caused by optical fiber refractivity. 2. Dynamic range is the data measured under the condition of the maximum pulse width and 3 minutes of average time. Dynamic range is the data measured under the condition of 200km/20000ns/3min. 3. Measuring conditions of blind zone: reflection event is within 5Km, reflection strength is 45dB. Measured by the minimum pulse width. |
||||||||
| Specification | |||
| Size & Display | 5.4 inch IPS touch screen display, 1920*1152 resolution | ||
| Network Port | 10/100/1000M auto adapt | ||
| WIFI | Built in 2.4G WIFI, speeds150M, display wireless camera image | ||
| H.265 mainstream test | H.265 & H .264 IP, 4K video display via mainstream | ||
| IP camera test | Support 500 brands IP camera test | ||
| IP discovery | Auto-scan the whole network segment IP address | ||
| HD coaxial camera test | TVI 5.0/ CVI 4.0/ AHD 4.0 camera test, UTC control & call OSD menu* Optional | ||
| CVBS camera test | 1 channel BNC input & 1 channel BNC looped output, NTSC/PAL (Auto adapt) * Optional | ||
| Zoom Image | 4x zoom, enlarge image, screen snapshot, save, view and record and playback | ||
| RJ45 cable TDR test | Test cable’s length, Max testing up to 600 meter | ||
| HDMI input | 4K 60FPS HDMI input * Optional | ||
| VGA input | Support VGA input * Optional | ||
| Power output | 48V PoE/ 24V2A/ 12V 3A / 5V 2A power output | ||
| UTP cable test | Test UTP cable connection status and display on the screen. Read the number on the screen. detect the near-end, mid-end and far-end fault point of RJ45 cable connector, also can test shield cable | ||
| Data monitor | Captures and analyzes the command data from controlling device, also can send hexadecimal | ||
| Network test | Trace route, Link monitor, DHCP server, port flashing, Ping test | ||
| Digital Cable tracer | Search BNC cable, network cable and telephone cable from the mess cables. | ||
| Electroscope | Voltage range | AC12-1000V | |
| Frequency | 50/60Hz | ||
| Alarm type | Sounds and light double alarms | ||
| Level | CAT.III 1000V / CAT.IV 600V;CE | ||
| PoE Voltage test | Measurement POE switch or PSE power supply voltage and cable connection status | ||
| Visual fault locator | 10mW visual fault locator with 650nm wavelength, emit red laser sources to test multi-mode and single mode fiber’s bending and breakage, test range 8KM | ||
| Optical power meter | Wavelength:1625,1550nm,1490nm,1310nm,1300nm,850nm, measurement range ,-70 ～ +10 dBm, for optical power testing and Fiber link loss relative measurement | ||
| Power | |||
| External power supply | DC 12V(2A) | ||
| Battery | Built-in 7.4V 5200mA Li-ion Battery | ||
| Rechargeable | After charging 2.5 hours, normal working time 11 hours | ||
| Parameter | |||
| Operation setting | OSD menu, select your desired language: English, Portuguese, Korean, Russian, Italian, French, Polish, Spanish, Japanese, Turkish, Deutsch, Serbian, Czech, Vietnamese etc | ||
| Auto off | 5-30 (mins) | ||
| Working environment | |||
| Working Temperature | -10℃---+50℃ | ||
| Working Humidity | 30%-90% | ||
| Dimension/Weight | 264mm x 182mm x 43mm / 1Kg | ||
Packing list
