Product Details:
|
| Fiber Type: | Single | Optical Connector: | FC/PC / FC/APC |
|---|---|---|---|
| Wavelength Resolution: | 1.0 Pm | Display Type: | LCD |
| Sensor Element: | InGaAs | Operating Temperature: | 0-50°C |
| Power Range: | + 5 ~ -70 DBm | ||
| Highlight: | Back Loss Insertion Loss Measurement Equipment,1625nm Optical Return Loss Meter |
||

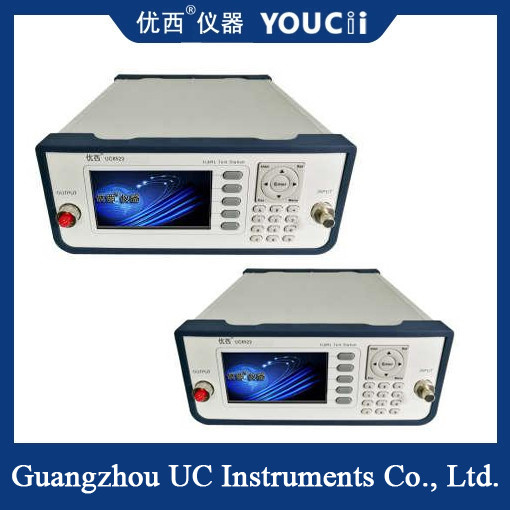

1625nm Single Light Source Back Reflector Back Loss Insertion Loss Measurement Equipment
The insertion loss tester is a multifunctional optical communication test instrument integrating stabilized light source, high-precision optical power meter, insertion loss tester and return loss tester. It can measure the loss of fiber connection, including insertion loss and return loss, and is an important test tool in the field of optical communication.
| Model # | U8513 |
| Sensor Element | InGaAs |
| Operation Wavelength Range | 1625 nm |
| Power Range | + 5 ~ -70 dBm |
| Return Loss Range | 0~60 dB |
| Application Fiber Type | Standard SM |
| Relative Accuracy – Return Loss | ± 0.4 dB |
| Absolute Power Accuracy | ± 0.2 dB |
| Relative Accuracy – Insertion Loss | < 0.02 dB Typical |
| Interface | RS232 |
| Power | 100 ~ 240 V AC |
| Operation Temperature | 0～ +40℃ |
| Storage Temperature | -30～+80℃ |
| Recalibration Period | 2 years |
| Dimensions | 245mm W×105mm H×320mm D |
| Weight | 3.5 kg |
Clear requirements: Before purchasing a 1625nm single-wavelength insertion loss instrument, first of all, the test requirements should be clearly defined, including the measurement range, accuracy requirements, interface types, etc.
