Handheld Optical Fiber Identifier (OFI) Ø0.25 , Ø0.9, Ø2.0, Ø3.0

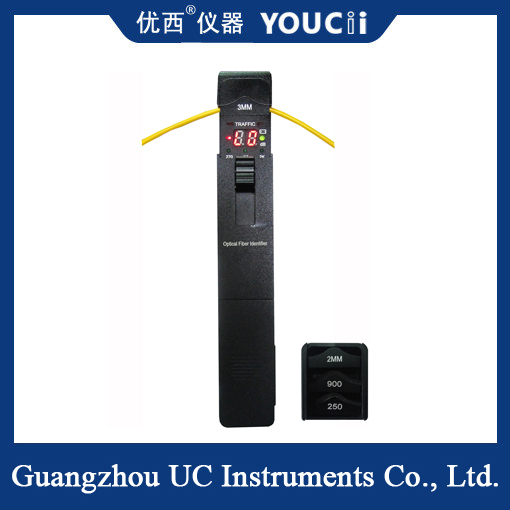

Large Image : Handheld Optical Fiber Identifier (OFI) Ø0.25 , Ø0.9, Ø2.0, Ø3.0

Product Details:

Place of Origin:	CHINA
Brand Name:	YOUCii
Model Number:	U8652

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiate a price
Packaging Details:	Carton
Delivery Time:	21 work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	25pcs+per month

Contact Now

Handheld Optical Fiber Identifier (OFI) Ø0.25 , Ø0.9, Ø2.0, Ø3.0

Description

Identified Wavelength Range:	800-1700 Nm	Identified Signal Type:	CW, 270Hz±5%，1kHz±5%，2kHz±5%
Detector Type:	Ø1mm InGaAs 2pcs	Adapter Type:	Ø0.25 , Ø0.9, Ø2.0, Ø3.0
Signal Direction:	Left & Right LED	Alkaline Battery(V):	2pcs AAA Batteries
Weight (g):	250

Handheld Optical Fiber Identifier (OFI) Ø0.25 , Ø0.9, Ø2.0, Ø3.0

Description

Optical Fiber Identifier (OFI) can quickly identify the direction of transmitted fiber and display the relative core power without interrupting the current service. The fiber identifier recognizes modulation like, 270Hz,1KHz and 2KHz with continuous audible tone. There are four adapter heads available: Ø0.25, Ø0.9, Ø2.0 and Ø3.0. This OFI is powered by 2 pcs very normal AA batteries.

Specifications

Model#	U8652
Identified Wavelength Range	800-1700 nm
Identified Signal Type	CW, 270Hz±5%,1kHz±5%,2kHz±5%
Detector Type	Ø1mm InGaAs 2pcs
Adapter Type	Ø0.25 , Ø0.9, Ø2.0, Ø3.0
Signal Direction	Left & Right LED
Singe Direction Test Range (dBm, CW/0.9mm bare fiber)	-46~10(1310nm)
Singe Direction Test Range (dBm, CW/0.9mm bare fiber)	-50~10(1550nm)
Signal Power Test Range (dBm, CW/0.9mm bare fiber)	-50~+10
Signal Frequency Display (Hz)	270, 1k, 2k
Frequency Test Range (dBm, Average Value)	Ø0.9, Ø2.0, Ø3.0 -30~0 (270Hz,1KHz)
	Ø0.9, Ø2.0, Ø3.0 -25~0 (2KHz)
	Ø0.25 -25~0 (1KHz,2KHz)
	Ø0.25 -20~0 (2KHz)
Insertion Loss(dB, Typical Value)	0.8 (1310nm)
Insertion Loss(dB, Typical Value)	2.5 (1550nm)
Alkaline Battery(V)	2pcs AAA batteries
Operating Temperature(℃)	-10－+60
Storage Temperature(℃)	-25－+70
Dimension (mm)	196X30.5X27
Weight (g)	250

Features

l Easy-to-use with “ONE KEY” operation;

l
Efficiently identifies the fiber transmission direction and

l
frequency tone (270Hz, 1KHz, 2KHz) with audible warning;

l Displays the relative core power;

l
Easy-to-replace adaptors;

l Durable metal housing and quality construction;

l Lower power indication.

l It's easy to carry and loss adaptors can be avoided with new adaptors box.

l Sunshade can avoid the interference with the natural light

Handheld Optical Fiber Identifier (OFI) Ø0.25 , Ø0.9, Ø2.0, Ø3.0 0

Handheld Optical Fiber Identifier (OFI) Ø0.25 , Ø0.9, Ø2.0, Ø3.0 1
