The Handheld Optical Fiber Identifier Can Quickly Identify Directions

Large Image : The Handheld Optical Fiber Identifier Can Quickly Identify Directions

Product Details:

Place of Origin:	CHINA
Brand Name:	YOUCii
Model Number:	U8652

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiate a price
Packaging Details:	Carton
Delivery Time:	21 work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	25pcs+per month

Contact Now

The Handheld Optical Fiber Identifier Can Quickly Identify Directions

Description

Signal Direction:	Left & Right LED	Signal Power Test Range:	-50~+10
Alkaline Battery(V):	2pcs AAA Batteries	Operating Temperature(℃):	-10－+60
Storage Temperature(℃):	-25－+70	Dimension (mm):	196X30.5X27
Weight (g):	250

The Handheld Optical Fiber Identifier Can Quickly Identify Directions

The handheld optical fiber identifier achieves non-destructive testing through macro bending technology and is a core tool for the maintenance, installation and emergency repair of optical fiber networks. Its high sensitivity, multi-functionality and portability make it a "capable assistant" for communication engineers.

Specifications

Model#	U8652
Identified Wavelength Range	800-1700 nm
Identified Signal Type	CW, 270Hz±5%,1kHz±5%,2kHz±5%
Detector Type	Ø1mm InGaAs 2pcs
Adapter Type	Ø0.25 , Ø0.9, Ø2.0, Ø3.0
Signal Direction	Left & Right LED
Singe Direction Test Range (dBm, CW/0.9mm bare fiber)	-46~10(1310nm)
Singe Direction Test Range (dBm, CW/0.9mm bare fiber)	-50~10(1550nm)
Signal Power Test Range (dBm, CW/0.9mm bare fiber)	-50~+10
Signal Frequency Display (Hz)	270, 1k, 2k
Frequency Test Range (dBm, Average Value)	Ø0.9, Ø2.0, Ø3.0 -30~0 (270Hz,1KHz)
	Ø0.9, Ø2.0, Ø3.0 -25~0 (2KHz)
	Ø0.25 -25~0 (1KHz,2KHz)
	Ø0.25 -20~0 (2KHz)
Insertion Loss(dB, Typical Value)	0.8 (1310nm)
Insertion Loss(dB, Typical Value)	2.5 (1550nm)
Alkaline Battery(V)	2pcs AAA batteries
Operating Temperature(℃)	-10－+60
Storage Temperature(℃)	-25－+70
Dimension (mm)	196X30.5X27
Weight (g)	250

Application scenarios
Optical fiber installation and maintenance

Optical cable splicing and emergency repair

Optical fiber Resource management
Take stock of the usage status (in use/idle) of each fiber core in the optical cable and optimize resource allocation.
When used in combination with OTDR (Optical Time Domain Reflectometer), the fault points of optical fibers are located.
Data Center and Local Area Network maintenance
In a high-density optical fiber environment, quickly identify specific optical fibers and simplify the maintenance process.
Detect the optical power attenuation of optical fiber links and evaluate network performance.

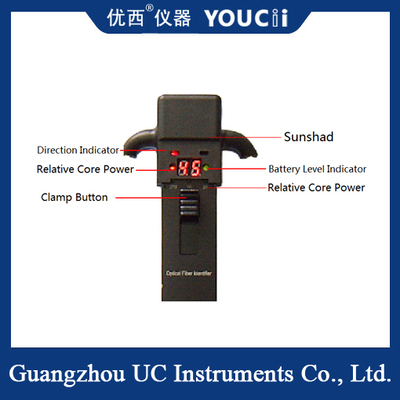

The Handheld Optical Fiber Identifier Can Quickly Identify Directions 0
