The Handheld Digital Display Adjustable Optical Attenuator

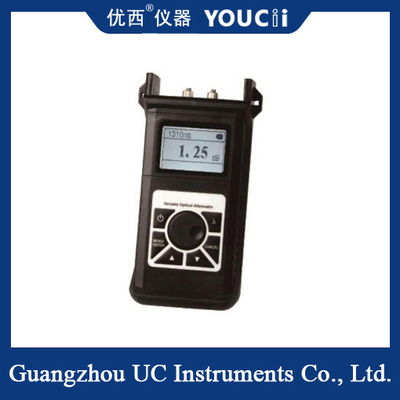

Large Image : The Handheld Digital Display Adjustable Optical Attenuator

Product Details:

Place of Origin:	CHINA
Brand Name:	YOUCii
Model Number:	U8631

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiate a price
Packaging Details:	Carton
Delivery Time:	21 work days
Payment Terms:	,L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	50pcs+per month

Contact Now

The Handheld Digital Display Adjustable Optical Attenuator

Description

Attenuation Wavelength Range:	1260～1650nm	Type Of Optical Fiber:	9/125um Single-mode Optical Fiber
Joint Type:	FC/PC	Calibration Wavelength:	1310/1490/1550/1625nm
Attenuation Range:	2.5～60dB	Resolution:	0.05dB
Insertion Loss:	<2.5dB

The Handheld Digital Display Adjustable Optical Attenuator

The U8631 handheld digital display adjustable optical attenuator can continuously and variably attenuate optical signals. This device is mainly used for online testing of laser systems. It is applicable to digital system applications including communication equipment (SDH synchronization and PDH quasi-synchronization) as well as systems that adopt analog modulation (CATV).

Model	U8631
Attenuation wavelength range	1260～1650nm
Type of optical fiber	9/125um single-mode optical fiber
Joint type	FC/PC
Calibration wavelength	1310/1490/1550/1625nm
Attenuation range	2.5～60dB
Resolution	0.05dB
Insertion loss	<2.5dB
Linearity	± 0.5 dB
Repeatability	± 0.2 dB
Overall attenuation accuracy	± 0.8 dB
Loss recovery	> 35 dB (typical value 40 dB)
Maximum input power	+20 dBm
Display type	*Dot matrix 12864 black and white, with white backlight**
Rechargeable battery	7.4V
Power adapter	7～8.5V
Working temperature	0～40℃
Storage temperature	-10～60℃
Humidity	0-85% (Non-condensing
Weight	450g

Functions and Features

U8631 uses a neutral-density filter to attenuate the optical signal. The attenuation is achieved by rotating the rotating dial on the front panel of the instrument, with the attenuation range being between 2.5 and 60dB.

The Handheld Digital Display Adjustable Optical Attenuator 0
