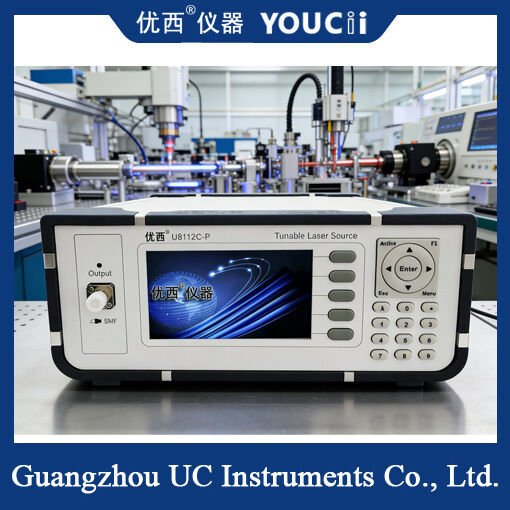

Product Description:
The Tunable Laser Source is a highly advanced optical device designed to meet the demanding needs of modern photonics and telecommunications applications. This product offers exceptional performance across multiple band options including O, C, L, and CL bands, making it a versatile solution for various wavelength requirements. Whether you are conducting research, development, or production testing, this tunable laser source provides reliable and precise laser output that can be finely adjusted to suit your specific application.
One of the standout features of this tunable laser source is its remarkable wavelength stability, which is maintained at ≤± 2 Pm. Such stability ensures consistent laser output, minimizing drift and fluctuations, which are critical for high-precision measurements and experiments. In addition to stability, the device also boasts excellent wavelength repeatability, with a typical repeatability of ±1 Pm and a maximum of ±2 Pm. This means you can depend on the laser to return to the exact wavelength setting repeatedly, enhancing the accuracy and reliability of your testing processes.
The tunable laser source is equipped with a user-friendly control interface that supports both USB and RS232 communication protocols. This dual interface design allows seamless integration with various control systems and software platforms, facilitating easy remote operation, automation, and data acquisition. Whether you prefer to connect via a modern USB interface or a traditional RS232 serial port, this product offers the flexibility to suit your existing infrastructure.
Features:
- Product Name: Tunable Laser Source
- Wavelength resolution: 1.0 Pm
- Power Adjust Range: 25 DB
- Relative intensity noise: ＜ -135dB
- Control Interface: USB/RS232
- Dimension: 245 Mm W, 105 Mm H, 320 Mm D
| Model |
U8112 |
| Band Option |
O |
C |
L |
CL |
| Wavelength (nm) |
1260~1360 |
1525~1568 |
1568~1610 |
1525~1610 |
| Output Power |
≥ 7dBm |
≥ 10dBm |
≥ 7dBm |
≥ 4dBm |
| Power Adjust Range (Option) |
25 dB |
| Wavelength resolution |
1.0 pm |
| Absolute wavelength accuracy |
± 10 pm, typ. <5 pm |
| Relative wavelength accuracy |
±5 pm, typ. ± 2 pm |
| Wavelength repeatability |
± 2 pm, typ. ±1 pm |
| Wavelength stability |
≤± 2 pm (24 hrs at constant temperature) |
| Tuning speed |
≤ 2 ms per step |
| Power stability |
≤ ± 0.01dB, (15min). |
| Power repeatability |
± 0.05dB |
| Power linearity |
± 0.3dB |
| Power flatness versus wavelength |
0.3dB typ. 0.5dB max. |
| Side-mode Suppression ratio |
≥ 45dB |
| Relative intensity noise |
＜ -135dB |
| Power |
AC 100 - 240 V ± 10%, 48 - 66 Hz, 100 VA max. |
| Storage temperature |
−40°C to +80°C |
| Operating temperature |
0°C to +45°C |
| Dimensions |
245 mm W, 105 mm H, 320 mm D |
| Weight |
2.0 kg |
Applications:
The YOUCii U8112 Tunable Laser Source is an advanced optical instrument designed for a variety of high-precision applications. With its exceptional wavelength repeatability of ± 2 pm (typical ±1 pm) and an absolute wavelength accuracy of ± 10 pm (typically less than 5 pm), this device ensures reliable and consistent performance in demanding environments. Its compact dimensions (245 mm width, 105 mm height, and 320 mm depth) make it highly portable and suitable for integration into various testing setups.
