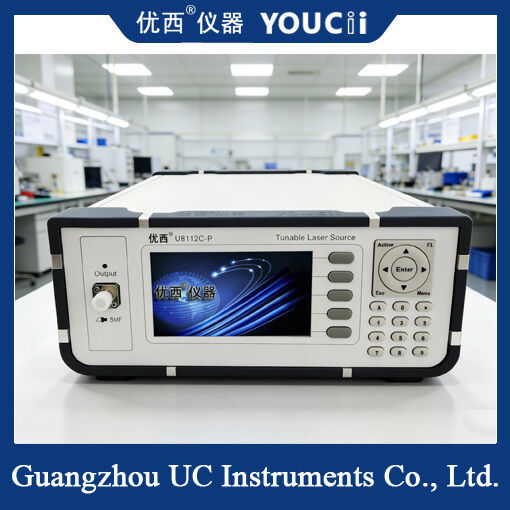

Product Description:
The Tunable Laser Source is an advanced optical testing instrument designed to provide highly precise and reliable wavelength tuning for a wide range of applications. It offers exceptional performance with a relative wavelength accuracy of ±5 Pm, and a typical accuracy of ±2 Pm, ensuring that users can rely on consistent and exact measurements for their optical systems. This high level of precision is crucial for applications requiring meticulous wavelength control, such as fiber optic communications, sensor calibration, and photonic device testing.
One of the standout features of this Tunable Laser Source is its impressive wavelength repeatability, rated at ±2 Pm with a typical repeatability of ±1 Pm. This means that the device can repeatedly return to the same wavelength with minimal deviation, which is essential for experiments and processes that depend on stable and repeatable light sources. The device’s wavelength resolution of 1.0 Pm allows for fine-tuned adjustments, enabling users to explore narrow spectral regions with high granularity.
In addition to its precise wavelength control, the Tunable Laser Source offers a wide power adjust range of 25 dB. This flexibility in power adjustment allows users to tailor the output power to their specific requirements, whether it is for low-power sensor testing or higher power system calibration. The ability to control power over a broad range enhances the versatility of the instrument and makes it suitable for a variety of laboratory and field applications.
| Model |
U8112 |
| Band Option |
O |
C |
L |
CL |
| Wavelength (nm) |
1260~1360 |
1525~1568 |
1568~1610 |
1525~1610 |
| Output Power |
≥ 7dBm |
≥ 10dBm |
≥ 7dBm |
≥ 4dBm |
| Power Adjust Range (Option) |
25 dB |
| Wavelength resolution |
1.0 pm |
| Absolute wavelength accuracy |
± 10 pm, typ. <5 pm |
| Relative wavelength accuracy |
±5 pm, typ. ± 2 pm |
| Wavelength repeatability |
± 2 pm, typ. ±1 pm |
| Wavelength stability |
≤± 2 pm (24 hrs at constant temperature) |
| Tuning speed |
≤ 2 ms per step |
| Power stability |
≤ ± 0.01dB, (15min). |
| Power repeatability |
± 0.05dB |
| Power linearity |
± 0.3dB |
| Power flatness versus wavelength |
0.3dB typ. 0.5dB max. |
| Side-mode Suppression ratio |
≥ 45dB |
| Relative intensity noise |
＜ -135dB |
| Power |
AC 100 - 240 V ± 10%, 48 - 66 Hz, 100 VA max. |
| Storage temperature |
−40°C to +80°C |
| Operating temperature |
0°C to +45°C |
| Dimensions |
245 mm W, 105 mm H, 320 mm D |
| Weight |
2.0 kg |
Applications:
The YOUCii U8112 Tunable Laser Source is an advanced and highly reliable optical testing instrument designed for various professional applications. With a power adjust range of 25 dB, this tunable laser source provides precise control over output power, making it ideal for detailed and accurate testing scenarios. Its wavelength repeatability of ±2 pm (typically ±1 pm) and wavelength stability of ≤±2 pm ensure consistent performance even in demanding environments, guaranteeing reliable results every time.
