Absolute Power Measurement Accuracy Is ±0.2dB, Echo Loss Tester

Product Description:

The Optical Return Loss Meter is an essential tool designed for precision measurement in fiber optic networks, offering outstanding performance and reliability. This advanced device is particularly tailored for professionals and technicians who require accurate and efficient testing of optical return loss in single-mode fiber systems. With its cutting-edge technology and user-friendly design, the Optical Return Loss Meter ensures that your fiber optic networks operate at peak efficiency and maintain optimal signal quality.

One of the standout features of this product is its exceptional relative accuracy in insertion loss measurement. The meter boasts a typical relative accuracy of less than 0.02 dB, enabling highly precise assessments that are crucial for maintaining high-quality fiber optic links. This level of accuracy minimizes measurement errors and enhances the reliability of test results, making it an indispensable instrument for network installation, maintenance, and troubleshooting.

Engineered specifically for standard single-mode (SM) fiber applications, the Optical Return Loss Meter excels in measuring return loss with high precision. It is optimized for standard SM fiber types, making it highly suitable for telecommunications, data centers, and other critical fiber optic infrastructure projects. The device’s compatibility with standard SM fibers ensures that users can rely on accurate and consistent measurements that comply with industry standards.

Specification

Applications:

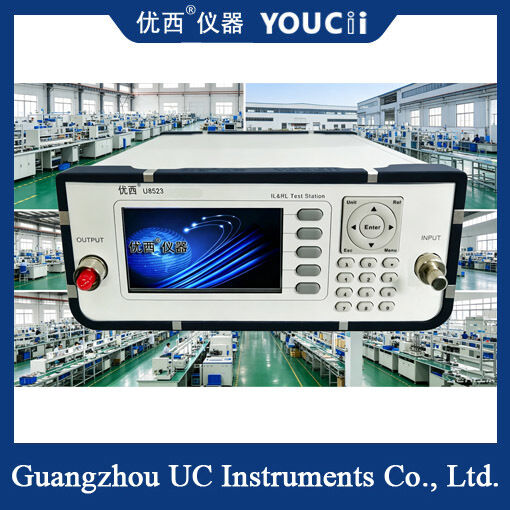

The YOUCii U8523 Optical Return Loss Meter, proudly made in CHINA, is an advanced and reliable instrument designed for precise measurement of optical return loss in fiber optic networks. Featuring a robust power range of +5 to -70 dBm and a return loss range of 0 to 60 dB, this device is essential for telecommunications engineers, network installers, and maintenance professionals seeking accurate diagnostics and network optimization. Its compact dimensions of 245mm W × 105mm H × 320mm D make it highly portable and convenient for field use.

This Return Loss Meter integrates a Dual-light source backscatter meter, which enhances its measurement capabilities by providing dual-wavelength testing that ensures comprehensive analysis of fiber optic cables. The dual-light source backscatter meter enables technicians to detect faults, splices, and connectors with improved accuracy, facilitating efficient troubleshooting and maintenance in various optical communication systems.

The U8523 model is particularly suitable for use in a wide range of application occasions and scenarios, including the installation and commissioning of fiber optic networks, routine network maintenance, and quality assurance testing in manufacturing environments. It is ideal for deployment in telecommunications service providers, data centers, and enterprise networks, where ensuring minimal signal reflection and optimal return loss is critical for high-performance data transmission.
