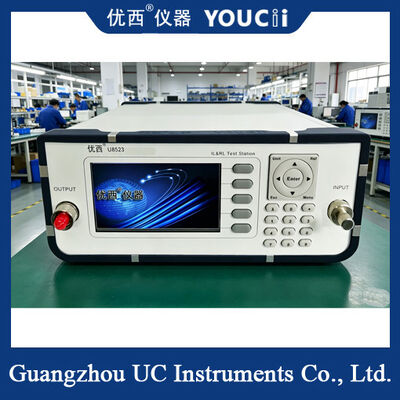

Product Description:
The Optical Return Loss Meter is a highly reliable and precise instrument designed for measuring the return loss in optical fiber networks. This device is essential for professionals working in fiber optic testing and maintenance, providing accurate assessments of backscatter and reflection characteristics within fiber optic cables. Known for its advanced technology and user-friendly interface, the Optical Return Loss Meter is an indispensable tool for ensuring optimal network performance and diagnosing faults in optical communication systems.
The Optical Return Loss Meter combines advanced dual-lamp technology with dual-light source backscatter measurement capabilities to deliver precise and dependable performance for fiber optic testing. Its operation wavelength range of 1310 nm and 1550 nm, combined with a compact and portable design, makes it an excellent choice for technicians and engineers working in diverse environments. infrastructure.
Specification
| Model # |
U8523 |
| Sensor Element |
InGaAs |
| Operation Wavelength Range |
1310 / 1550 nm |
| Power Range |
+ 5 ~ -70 dBm |
| Return Loss Range |
0~60 dB |
| Application Fiber Type |
Standard SM |
| Relative Accuracy – Return Loss |
± 0.4 dB |
| Absolute Power Accuracy |
± 0.2 dB |
| Relative Accuracy – Insertion Loss |
< 0.02 dB Typical |
| Interface |
RS232 |
| Power |
100 ~ 240 V AC |
| Operation Temperature |
0～ +40℃ |
| Storage Temperature |
-30～+80℃ |
| Recalibration Period |
2 years |
| Dimensions |
245mm W×105mm H×320mm D |
| Weight |
3.5 kg |
Applications:
The YOUCii U8523 Optical Return Loss Meter is an advanced testing instrument designed for precision measurement of return loss and insertion loss in optical fiber networks. Originating from China, this product boasts a compact dimension of 245mm W × 105mm H × 320mm D, making it highly portable and convenient for field operations. With an operation wavelength range of 1310 / 1550 nm, the U8523 is perfectly suited for testing standard single-mode fiber networks commonly used in telecommunications and data communication systems.
This Return Loss Meter integrates dual-light source backscatter meter technology, enabling accurate and reliable detection of backscatter signals at two different wavelengths. The dual-light source backscatter meter feature allows technicians to perform comprehensive fiber diagnostics and pinpoint faults, reflections, and connection quality issues with enhanced precision. This capability is essential for maintaining high network performance and minimizing downtime.
